Plasma Clean | NOOR SCIENTIFIC & TRADE

Grease, Smoke & Odour Control

Mostafa Refaay — Sun, 07 Dec 2025 13:53:26 +0000

Grease, Smoke & Odour Control

RECIRC Filtration Tower

A fully self-contained recirculation filtration system designed for commercial kitchens where external ducting is not possible

A high-efficiency electrostatic precipitator combined with powerful UV-C odour-reduction technology, engineered for advanced grease, smoke, and odour control in demanding commercial kitchen ventilation applications.

Electro-clean UV

A high-performance combined ESP + UV system that removes grease, smoke, and odour from commercial kitchen extract air while reducing fire risk, improving duct cleanliness, and supporting full TR19 Grease compliance.

The post Grease, Smoke & Odour Control first appeared on NOOR SCIENTIFIC & TRADE.

Grease & Smoke Control

Mostafa Refaay — Sun, 07 Dec 2025 13:53:22 +0000

Grease & Smoke Control

ESP Air Green (AG Series)

High-efficiency ESP systems are engineered with extra-depth collector cells, dual-polarity ionization, and superior airflow performance. designed to deliver industry-leading grease and smoke control for commercial kitchen ventilation.

Electro-clean – Electrostatic Precipitator

A high-efficiency electrostatic precipitator engineered for reliable removal of grease and smoke particulates from commercial kitchen exhaust systems

The post Grease & Smoke Control first appeared on NOOR SCIENTIFIC & TRADE.

Grease & Odour Control

Mostafa Refaay — Sun, 07 Dec 2025 13:53:20 +0000

Grease & Odour Control

Techniclean Grease & Odour Control

A high-efficiency UV-C and ozone-based grease and odour control solution designed for commercial kitchen ventilation. Available in two configurations—canopy-mounted or in-duct—to suit new builds, retrofits, and space-restricted environments.

The post Grease & Odour Control first appeared on NOOR SCIENTIFIC & TRADE.

Activated Carbon & Fine Filtration

Mostafa Refaay — Sun, 07 Dec 2025 13:53:17 +0000

Activated Carbon & Fine Filtration

High-Efficiency Particulate Air (HEPA) Filters

High-performance HEPA filters engineered to capture sub-micron particles as small as 0.3 microns, ensuring exceptional air purity in high-efficiency and high-velocity ventilation systems.

Carb-clean Activated Carbon

A modular, high-efficiency activated carbon filtration solution engineered for long-term odour control in commercial kitchen extract systems.

Activated Carbon Filter

High-performance activated carbon filters engineered to remove residual ozone and provide a final odour-polishing stage in commercial kitchen ventilation systems.

The post Activated Carbon & Fine Filtration first appeared on NOOR SCIENTIFIC & TRADE.

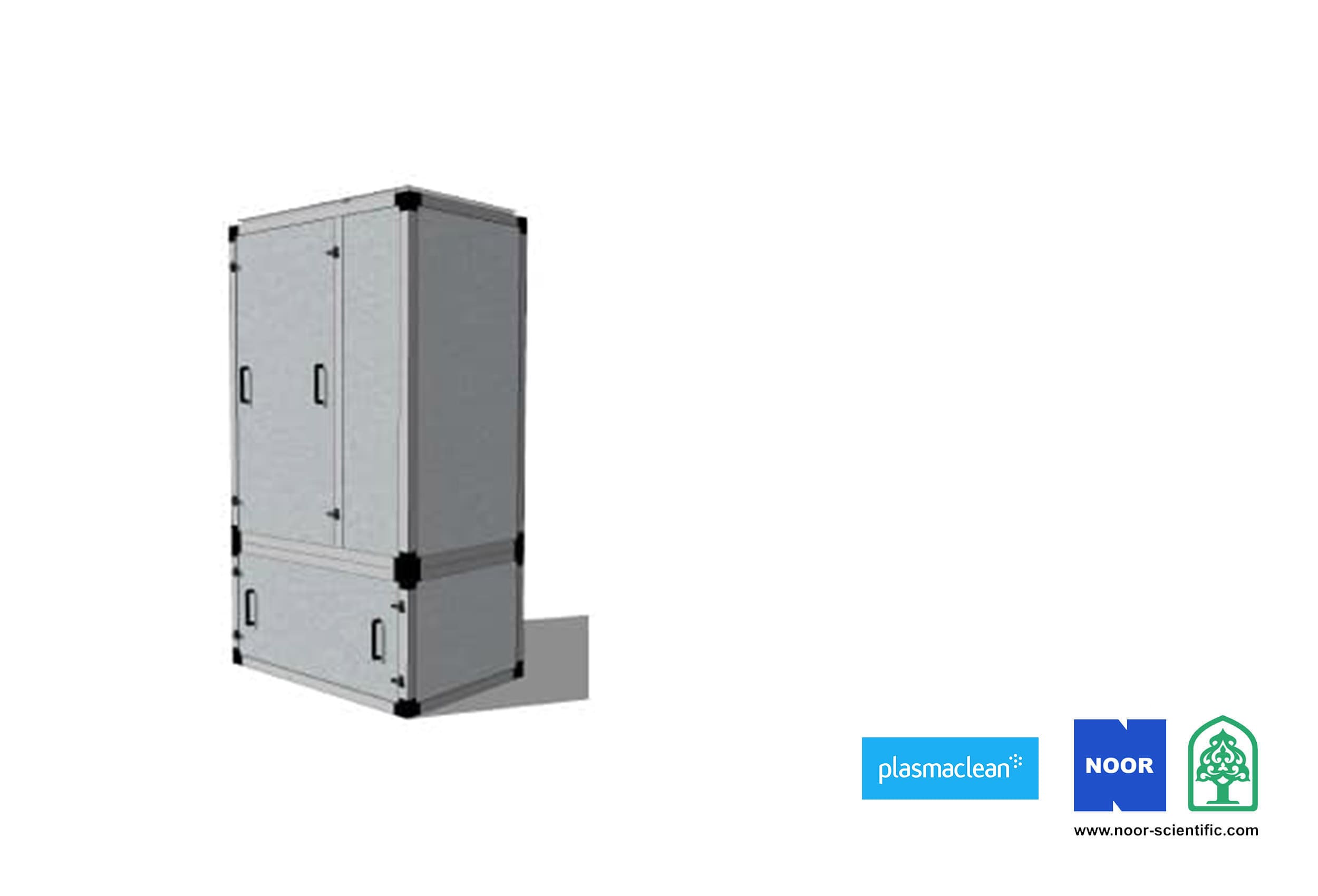

RECIRC Filtration Tower

Mostafa Refaay — Sun, 16 Nov 2025 14:44:00 +0000

RECIRC Filtration Tower

The RECIRC Filtration Tower From Plasma Clean Air provides a complete grease, smoke, and odour-removal solution for commercial kitchens unable to install external ductwork due to planning restrictions, space limitations, or architectural constraints.
Each RECIRC unit integrates up to 5 stages of advanced filtration, a built-in fan set, and a robust insulated enclosure. The system captures grease, smoke, fine particulate, and odour molecules before recirculating clean, filtered air back into the kitchen space.
Available in three capacities—1.0 m³/s, 1.5 m³/s, and 2.0 m³/s—the units can be mounted vertically as standalone towers or installed horizontally in-duct. The RECIRC system supports electric cooking applications and is ideal for high-density urban areas, basements, shopping malls, food halls, and pop-up kitchens.

Up to 5 filtration stages for complete grease, smoke & odour control:
Optional canopy coil filters
G4 pleated panel filter (Coarse >70% ISO16890)
F7 bag filter (ePM1 >60% ISO16890)
H11 HEPA filter (≥95% MPPS efficiency)
Activated carbon filter
Integrated fan + filter recirculation assembly
Can be installed vertically (tower) or horizontally (in-duct)
Suitable only for electric cooking appliances
Designed to recirculate filtered air back to the kitchen
Construction:
Closed-cell aluminium PentaPost framework
Double-skinned enclosure (20 SWG galvanized inner + Plastisol outer)
50 mm mineral fibre insulation
Stainless steel construction option available
Recommended installation distance: ≥1 m from duct bends
Requires uniform airflow distribution across all filtration stages
User-friendly controls with maintenance indicator
Supports air-conditioned environments to prevent heat build-up
Suitable for recirculation in enclosed or restricted spaces

Eliminates the need for external ductwork or extraction fans
Reduces capex and installation complexity by avoiding building penetrations
Enables commercial cooking even where planning permission for extraction is denied
Supports operation in basements, high-rises, malls, pop-ups, and enclosed kitchens
Delivers ongoing savings by reducing TR19 grease-duct cleaning
Allows clean recirculation of treated air back to the kitchen
User-friendly controls with maintenance alerts
Provides a complete multi-stage filtration and recirculation solution

Commercial kitchens without access to external extraction
Locations with planning or architectural restrictions
Shopping malls, retail centers, basements, food halls
High-rise buildings, enclosed rooms, indoor food kiosks
Pop-up kitchens and temporary food concepts
Electric-only cooking environments requiring full recirculation

Other Products From Plasma Clean Air

ESP AG UV Series

A high-efficiency electrostatic precipitator combined with powerful UV-C odour-reduction technology, engineered for advanced grease, smoke, and odour control in demanding

Techniclean Grease & Odour Control

A high-efficiency UV-C and ozone-based grease and odour control solution designed for commercial kitchen ventilation. Available in two configurations—canopy-mounted or

RECIRC Filtration Tower

A fully self-contained recirculation filtration system designed for commercial kitchens where external ducting is not possible

Electro-clean UV

A high-performance combined ESP + UV system that removes grease, smoke, and odour from commercial kitchen extract air while reducing

The post RECIRC Filtration Tower first appeared on NOOR SCIENTIFIC & TRADE.

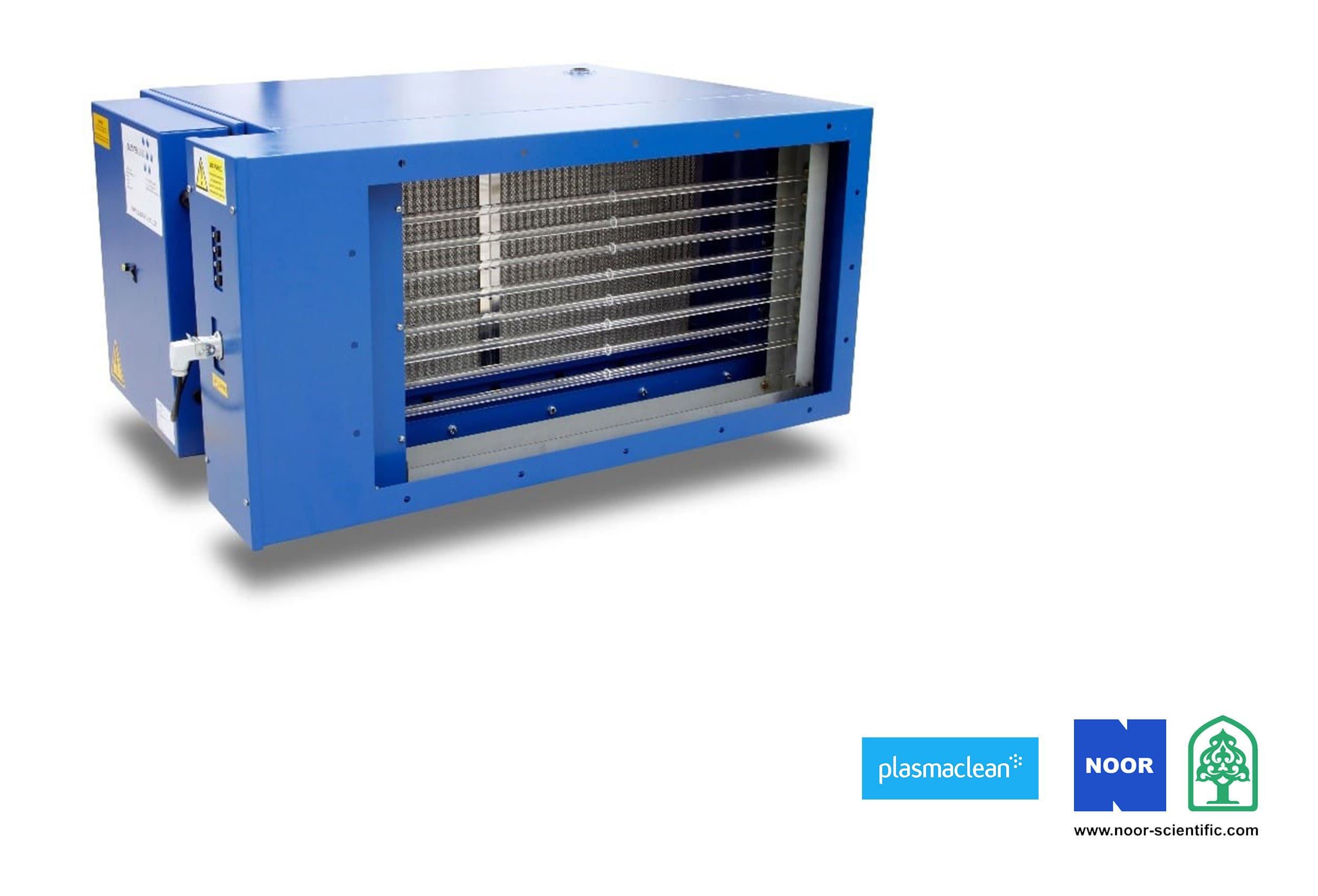

ESP AG UV Series

Mostafa Refaay — Sun, 16 Nov 2025 14:41:47 +0000

ESP AG UV Series

The ESP AG UV Series From Plasma Clean Air integrates dual-stage electrostatic precipitation with UV-C oxidation, delivering enhanced removal of grease, smoke particulates, and cooking odours in one compact, high-performance system. With efficiencies reaching 95% (ASHRAE 52.2) and up to 99% in double-pass configurations, the AG UV units are designed for heavy-duty kitchens and high-sensitivity locations.
The welded galvanized-steel housing, blue epoxy coating, and an IPX4 rating (with optional weatherproof cover) ensure durable performance in challenging environments. These units support multi-pass system design, extended dwell times, and reduced fan duty requirements, enabling both compliance and energy efficiency.

Integrated ESP + UV-C technology for combined particulate & odour removal
Efficiency:
95% (ASHRAE 52.2)
99% (double-pass, calculated)
Recommended multi-pass configurations for high grease/smoke applications
Minimum recommended 1-second dwell time between UV and discharge
Static pressure: 115 Pa per pass (clean)
Maximum operating temperature: 40°C
IP rating: IPX4
Optional weatherproof cover available
Construction: Welded galvanized steel
Finish: Blue epoxy powder coating (RAL 5017)
Electrical supply: 230 V / 1 Phase / 50 Hz
Maximum airflow: 2.1 m³/s

Combines high-efficiency ESP particulate removal with UV-C odour reduction
Significant smoke and grease reduction in a single integrated footprint
Enhanced air quality for compliance in sensitive locations
Supports multi-pass configurations for maximum purification
Suitable for demanding or high-volume commercial kitchens
Energy-efficient operation through optimised pressure drop
Durable construction ensures long service life
Improves downstream filter and ductwork cleanliness
Reduced fire risk by capturing and oxidising grease aerosols

Commercial kitchens with high grease & smoke output
Restaurants, hotels, cloud kitchens, food halls
Installations requiring enhanced odour-control performance
Locations needing higher-level compliance than standard ESP systems
Multi-stage extract lines
Sensitive sites:
Residential adjacencies
Low-level discharge
Urban/indoor environments

Other Products From Plasma Clean Air

Carb-clean Activated Carbon

A modular, high-efficiency activated carbon filtration solution engineered for long-term odour control in commercial kitchen extract systems.

Activated Carbon Filter

High-performance activated carbon filters engineered to remove residual ozone and provide a final odour-polishing stage in commercial kitchen ventilation systems.

Electro-clean UV

A high-performance combined ESP + UV system that removes grease, smoke, and odour from commercial kitchen extract air while reducing

ESP AG UV Series

A high-efficiency electrostatic precipitator combined with powerful UV-C odour-reduction technology, engineered for advanced grease, smoke, and odour control in demanding

The post ESP AG UV Series first appeared on NOOR SCIENTIFIC & TRADE.

Electro-clean UV

Mostafa Refaay — Sun, 16 Nov 2025 14:39:13 +0000

Electro-clean UV

Electro-clean UV From Plasma Clean Air is a modular, integrated solution that merges electrostatic precipitation with UV-ozone odour control, delivering comprehensive grease, smoke, and odour removal. Engineered for commercial kitchen ventilation, it captures particulates as small as 0.01 microns, oxidises grease residues, and breaks down cooking odours through high-intensity UV-C photolysis and ozonolysis.
The system is IP55-rated for outdoor installation and designed with a slimline UV section to fit in restricted spaces. Its low-pressure-drop performance reduces running costs, while an optional oil sump enhances maintenance cleanliness. Electro-clean UV seamlessly integrates with Plasma Clean ESP and Carb-clean modules for a full multi-stage purification line.

Combined ESP + UV-C ozone technology for grease, smoke & odour control
Four-stage purification system:
Stage 1: Aluminium mesh pre-filter
Stage 2: Ionization zone for particles down to 0.01 microns
Stage 3: Collector cells with parallel plates
Stage 4: UV-C photolysis & ozonolysis
IP55-rated construction suitable for outdoor installation
Low pressure drop (<120 Pa per pass) for reduced energy consumption
Modular design compatible with:
Electro-clean ESP units
Carb-clean activated carbon modules
Adjustable airflow direction for flexible installation
Packaged system with slimline UV section
Optional oil sump for clean grease & oil capture
Interlocked to airflow for safety compliance
UV lamp life: ~8,000 hours
Construction: Cold-rolled sheet metal
Finish: Powder-coated

High-efficiency particulate & odour removal in a single integrated unit
Keeps ductwork virtually grease-free, reducing TR19 cleaning frequency
Low-pressure-drop operation lowers energy and fan costs
Reduces fire risk through improved grease control
Packaged UV system fits tight spaces
Modular design enables tailored purification lines
Immediate upgrade path with ESP and activated-carbon modules
Improved safety via airflow interlock and UV access management

Commercial kitchens with medium to heavy grease & odour loads
Restaurants, hotels, central kitchens, food courts, cloud kitchens
Multi-stage extract systems
Installations requiring TR19 Grease compliance
Sites requiring outdoor-rated purification units
Environments with limited space needing slimline UV integration

UKCA Certified
CE Certified
Designed to comply with:
EMAQ+
TR19 Grease
BESA DW/172

Other Products From Plasma Clean Air

High-Efficiency Particulate Air (HEPA) Filters

High-performance HEPA filters engineered to capture sub-micron particles as small as 0.3 microns, ensuring exceptional air purity in high-efficiency and

Carb-clean Activated Carbon

A modular, high-efficiency activated carbon filtration solution engineered for long-term odour control in commercial kitchen extract systems.

Techniclean Grease & Odour Control

A high-efficiency UV-C and ozone-based grease and odour control solution designed for commercial kitchen ventilation. Available in two configurations—canopy-mounted or

Activated Carbon Filter

High-performance activated carbon filters engineered to remove residual ozone and provide a final odour-polishing stage in commercial kitchen ventilation systems.

The post Electro-clean UV first appeared on NOOR SCIENTIFIC & TRADE.

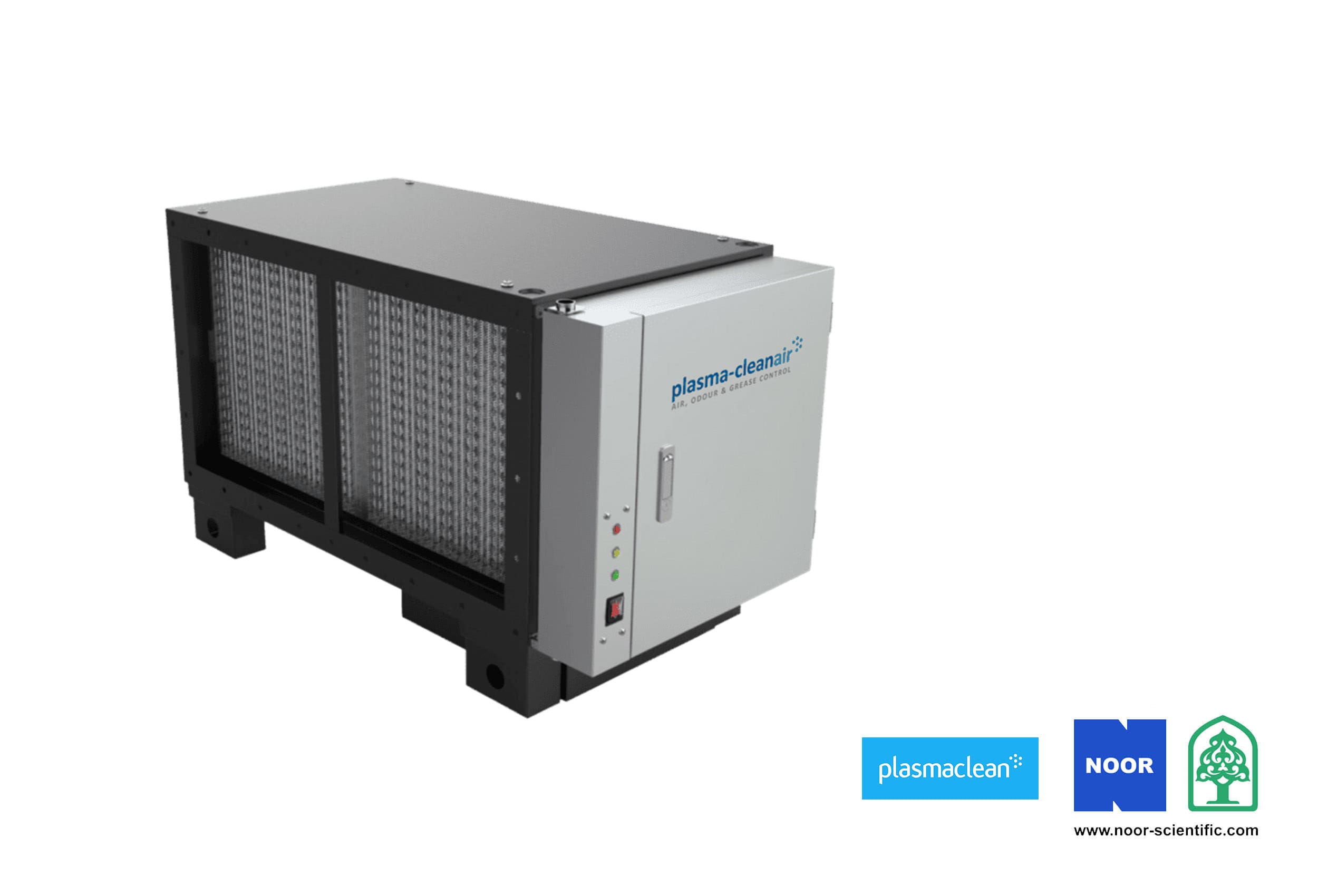

ESP Air Green (AG Series)

Mostafa Refaay — Sun, 16 Nov 2025 14:36:53 +0000

ESP Air Green (AG Series)

The ESP Air Green (AG Series) From Plasma Clean Air is an advanced electrostatic precipitator range developed to outperform standard ESP technologies. The system incorporates dual-polarity ionization, enabling both positively and negatively charged particle capture—unlike conventional honeycomb systems that leave up to 20% of particles untreated.
Each unit features an extra-depth collector cell and stainless-steel spiked ionizers that significantly improve particulate capture efficiency, making AG units up to twice as effective as many competitor products. With low pressure drop, solid-state power supplies, and robust galvanized steel construction, these ESPs provide reliable long-term operation in demanding kitchen extraction systems.
The AG Series offers multiple capacities from 3,500 CMH to 16,000 CMH, allowing scalable installation in duct-mounted configurations for small, medium, and large commercial kitchens.

Extra-depth collector cell for significantly higher capture efficiency
Dual-polarity ionization for improved particle charging
Stainless-steel spiked ionizers for extended equipment life
Solid-state high-frequency power supply
Low pressure drop: ~65–90 Pa per pass
Particle size removal: 0.01 to 10 microns
Efficiency:
Up to 95% (ASHRAE 52.2)
Up to 99% (double-pass—calculated)
Welded galvanized steel housing (18–16 gauge)
Blue epoxy powder-coated finish (RAL 5017)
Single-phase input: 220–240 V / 50 Hz
Power switch with indicator light
Standard aluminium mesh pre-filter
Forever-filter ionizer/collector cell
Optional heavy oil pre-filter
Optional activated carbon after-filter
Multiple units joinable for increased volume

Captures both positive and negative ionized particles for superior efficiency
Extra-depth collector cells for improved particulate retention
Low operating costs due to very low pressure drop
Long service life with stainless-steel ionizers
High reliability using solid-state power systems
Wide capacity range supports scalable installations
Enhanced grease and smoke removal prevents duct contamination and fire risk
Supports optional activated carbon filtration for odour reduction

Commercial kitchens with medium to heavy grease loads
Restaurants, food courts, cloud kitchens, hotel kitchens
High-airflow extraction systems requiring 3,500–16,000 CMH
Installations needing superior smoke and grease removal beyond standard ESPs
Multi-stage filtration systems
Sites requiring compact duct-mounted purification units
