Bionet | NOOR SCIENTIFIC & TRADE

SonoMe 14L

Mostafa Refaay — Wed, 17 Dec 2025 09:26:13 +0000

SonoMe 14L

SonoMe 14L is a premium linear handheld ultrasound probe engineered by Bionet to deliver exceptionally detailed imaging for superficial structures, vascular assessment, musculoskeletal evaluation and procedural guidance. Operating at an ultra-high frequency range of 10–14 MHz, the probe provides excellent near-field resolution suitable for detailed soft-tissue examinations.

With a scanning depth of up to 5.5 cm, SonoMe 14L is ideal for thyroid, breast, tendon, nerve, vascular and MSK applications where precision and sharp image detail are essential. The compact dimensions (157 × 67 × 29 mm) and lightweight design (200 g) make the device easy to use in fast-paced point-of-care settings including emergency care, outpatient clinics and mobile diagnostic environments.

SonoMe 14L supports standard imaging modes such as B-mode and M-mode, with optional Color Doppler on compatible versions. It connects to smartphones and tablets via USB-C or wireless configurations depending on the model, providing a fully portable ultrasound workflow.

High-frequency linear ultrasound probe
Frequency range: 10 – 14 MHz
Depth range: Up to 5.5 cm
Weight: 200 g
Dimensions: 157 × 67 × 29 mm
Scan modes: B-mode, M-mode, Color Doppler, PWD, Power Doppler
Connectivity: USB-C / Wireless (depending on configuration)
Compatible with: Android / iOS smartphones and tablets
Power supply: Powered via connected smart device (no internal battery)

Exceptional near-field resolution for superficial imaging
Lightweight design ideal for point-of-care and mobile diagnostics
Ultra-high frequency enables detailed visualization of fine structures
Smart-device compatibility enhances mobility and ease of use
Ideal for thyroid, breast, vascular and MSK examinations

Point-of-care ultrasound for superficial structures, vascular mapping, MSK imaging, thyroid and breast evaluation, nerve assessment, procedural guidance and emergency bedside imaging.

Manufactured under ISO 13485 quality system. CE-marked handheld ultrasound device; national registrations may vary.

Other Products From Bionet

FC1400

SonoMe H10L

SonoMe H5C10L

The post SonoMe 14L first appeared on NOOR SCIENTIFIC & TRADE.

SonoMe H10L

Mostafa Refaay — Wed, 17 Dec 2025 09:21:25 +0000

SonoMe H10L

SonoMe H10L is a high-frequency linear handheld ultrasound probe developed by Bionet for clinicians requiring sharp superficial and vascular imaging in point-of-care environments. With a frequency range of 7.5–10 MHz, the probe delivers excellent detail resolution for MSK, vascular mapping, thyroid assessments, tendon evaluation and needle-guided procedures.

The system provides a depth range of 20–100 mm, making it suitable for both shallow and medium-depth scanning. Its compact design (160 × 64 × 23 mm) and lightweight construction (230 g) make it easy to use in emergency care, outpatient clinics and mobile medical services.

SonoMe H10L connects to smartphones or tablets via USB-C or wireless capability depending on the model package, enabling a full ultrasound workflow directly on portable smart devices. Supporting standard imaging modes such as B-mode, M-mode and optional Color Doppler (on compatible versions), SonoMe H10L is ideal for clinicians seeking a portable, accurate and user-friendly diagnostic tool.

Linear ultrasound probe for superficial and vascular imaging
Frequency range: 7.5 – 10 MHz
Depth range: 20 mm – 100 mm
Weight: 230 g
Dimensions: 160 × 64 × 23 mm
Scan modes: B-mode, M-mode, Color Doppler, PWD, Power Doppler
Connectivity: USB-C / Wireless (depending on configuration)
Compatible with: Android / iOS smartphones and tablets
Power supply: Powered via connected smart device (no internal battery)

High-resolution imaging ideal for MSK, vascular and procedural guidance
Lightweight and compact for point-of-care use in multiple clinical settings
Wide compatibility with smartphones and tablets enhances mobility
Strong frequency performance produces crisp, detailed images
Ideal for emergency medicine, outpatient clinics and bedside exams

Point-of-care ultrasound for musculoskeletal imaging, vascular assessment, superficial structures, thyroid and breast imaging, tendon evaluation, procedural guidance and emergency medicine.

Manufactured under ISO 13485 quality system. CE-marked handheld ultrasound device; national regulatory registrations may vary.

Other Products From Bionet

Cardio7

SE‑2012

SonoMe H10L

The post SonoMe H10L first appeared on NOOR SCIENTIFIC & TRADE.

SonoMe H5C10L

Mostafa Refaay — Wed, 17 Dec 2025 09:19:16 +0000

SonoMe H5C10L

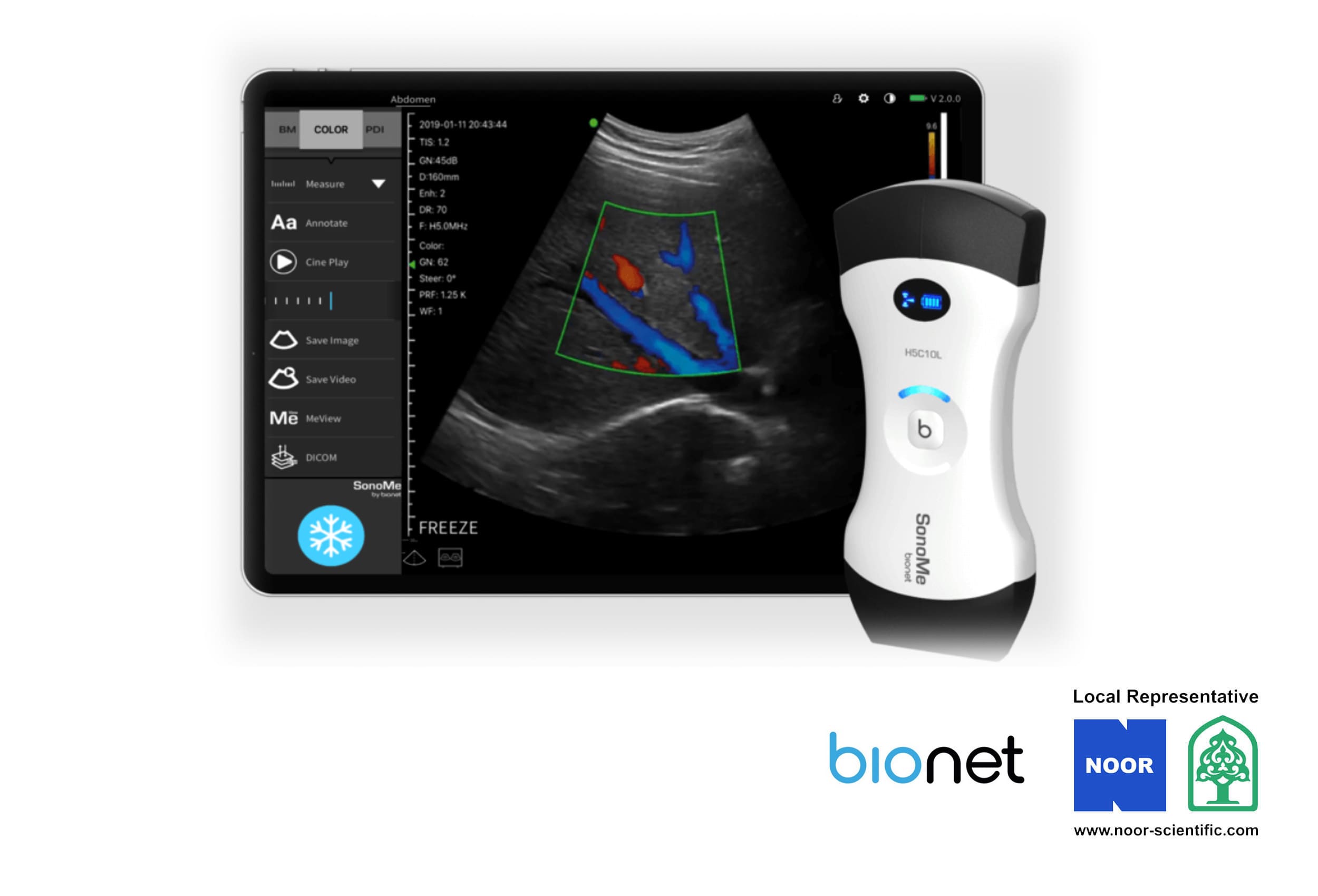

SonoMe H5C10L is a versatile handheld ultrasound transducer developed by Bionet for point-of-care diagnostics in emergency care, outpatient clinics, general medicine, and bedside imaging. Featuring both convex and linear heads in a single unit, it allows clinicians to perform deep abdominal scans as well as high-resolution superficial imaging without changing probes.

The convex transducer operates at 5 MHz, providing penetration suitable for abdominal and general imaging, while the linear head operates at 10 MHz, delivering detailed images for vascular, musculoskeletal and superficial structures. The device connects directly to smartphones or tablets via USB-C or wireless connection (depending on the model configuration), enabling portable imaging without the need for a full ultrasound console.

Its lightweight design (approximately 250 g) and compact form factor make SonoMe H5C10L ideal for rapid assessments, emergency response, primary care, home visits and mobile clinics. The system supports standard scanning modes including B-mode and M-mode, with color Doppler available on compatible configurations.

Dual-head design: Convex + Linear in one device
Convex frequency: 5 MHz
Linear frequency: 10 MHz
Depth range: Up to 10–12 cm depending on mode
Weight: Approx. 250 g
Scan modes: B-mode, M-mode, Color Doppler, PWD, Power Doppler
Connectivity: USB-C / Wireless (depending on model bundle)
Compatible with: Android / iOS smartphones and tablets
Power supply: Powered through connected smart device (no internal battery)

One probe for both deep and superficial imaging
Highly portable solution for point-of-care and mobile diagnostics
Dual-frequency heads increase clinical flexibility
Compatible with smartphones and tablets for real-time imaging
Ideal for emergency care, primary care and bedside assessment

Point-of-care ultrasound for abdominal exams, superficial imaging, MSK, vascular assessment, emergency diagnostics, primary care, home-care visits and mobile clinics.

Manufactured under ISO 13485 certified quality system. CE-marked handheld ultrasound device; national registrations may vary.

Other Products From Bionet

SonoMe 14L

SE‑2003

Cardio7

The post SonoMe H5C10L first appeared on NOOR SCIENTIFIC & TRADE.

FC1400

Mostafa Refaay — Wed, 17 Dec 2025 08:25:49 +0000

FC1400

FC1400 by Bionet is an advanced fetal monitoring system designed for antenatal clinics, labor wards and maternity departments that require continuous and reliable fetal assessment. The 10.1” touchscreen display provides a clear view of fetal heart rate trends, uterine contractions, fetal movement and twin-monitoring parameters.

The system supports a full range of fetal monitoring measurements, including FHR via ultrasonic pulsed Doppler, uterine activity via strain-gauge TOCO transducer and fetal movement monitoring. FC1400 accommodates single or twin fetuses, presenting real-time traces with high accuracy.

With internal storage capable of holding up to 1,000 patient records, FC1400 enhances workflow efficiency in maternity care settings. Connectivity features include LAN, USB, nurse call and external printer options. Its compact footprint and 3.5 kg weight make it easy to move between examination rooms or bedside environments.

10.1" high-resolution TFT LCD touchscreen for clear real-time monitoring
Monitoring parameters: FHR, TOCO, MFM, FM, Twins monitoring capability
FHR measurement technology: Ultrasonic pulsed Doppler
Uterine contraction monitoring: Strain gauge TOCO transducer
Fetal movement monitoring: Direct fetal movement detection
Paper output: 150 mm thermal array printing
Data storage: Up to 1,000 patient records
Connectivity: LAN / USB / Nurse call / External printer
Weight: 3.5 kg
Dimensions: 340 × 270 × 110 mm
Battery: Rechargeable battery for portable use

Large touchscreen improves visibility and workflow for maternity staff
Supports single or twin fetus monitoring with high accuracy
Comprehensive monitoring parameters increase clinical confidence
Portable design allows use in clinics, wards and bedside environments
High storage capacity simplifies record management across patient visits

Continuous and intermittent fetal monitoring in antenatal clinics, maternity wards, labor rooms and obstetric departments.

Manufactured under ISO 13485 certified quality system. CE-marked fetal monitoring device; national approvals may vary.

Other Products From Bionet

Cardio Q50

SonoMe 14L

SE‑2012

The post FC1400 first appeared on NOOR SCIENTIFIC & TRADE.

Cardio Q70

Mostafa Refaay — Tue, 16 Dec 2025 14:57:28 +0000

Cardio Q70

Cardio Q70 is a next-generation 12-lead resting ECG system developed by Bionet for high-precision cardiac diagnostics. The system features a 10.1” capacitive touchscreen that provides exceptional waveform visibility and fast, intuitive navigation. It supports advanced diagnostic interpretation, rhythm analysis, beat-to-beat review and a variety of ECG reporting formats.

With sampling rates up to 32,000 samples per second in high-resolution mode, Cardio Q70 ensures highly accurate ECG waveform capture. The system supports internal storage of up to 10,000 ECGs and offers multiple connectivity options for data export and workflow integration. Standard 210 mm thermal printer output allows quick ECG printing in hospital and clinic workflows.

Designed for cardiology practices, hospitals, outpatient clinics and diagnostic centres, Cardio Q70 delivers premium ECG performance with efficient operation and reliable diagnostic support.

• 10.1" capacitive TFT LCD touchscreen for waveform display and rapid menu interaction
• 12-lead diagnostic ECG acquisition
• Sampling rates: up to 32,000 samples per second (high-resolution mode)
• Diagnostic ECG interpretation with comprehensive measurement parameters
• Rhythm, beat-to-beat and average ECG reporting formats
• Internal storage: Up to 10,000 ECGs internal memory
• Standard 210 mm thermal recording output
• Connectivity options: USB, LAN, Wi-Fi (if configured), external printer support
• Advanced filtering: AC, EMG, baseline wander, high-pass & low-pass filters

• Large 10.1” touchscreen enhances visibility and reduces user effort
• High-resolution sampling ensures superior diagnostic precision
• Extensive storage simplifies ECG data management
• Advanced filtering produces cleaner ECG traces
• Ideal for hospitals, cardiology practices and outpatient diagnostic workflows

12-lead resting ECG testing in cardiology clinics, internal medicine departments, diagnostic centres, outpatient clinics and hospital ECG units.

Manufactured under ISO 13485 certified quality system. CE-marked and FDA-cleared ECG device; national registrations may differ by region.

Other Products From Bionet

SonoMe H10L

SonoMe H5C10L

SE‑2012

The post Cardio Q70 first appeared on NOOR SCIENTIFIC & TRADE.

Cardio Q50

Mostafa Refaay — Tue, 16 Dec 2025 14:51:15 +0000

Cardio Q50

Cardio Q50 is Bionet’s high-end resting ECG system designed for healthcare providers who require superior ECG quality, fast workflow, and advanced diagnostic accuracy. Its 8” touchscreen display enables clinicians to review waveforms clearly and navigate system menus effortlessly.

The Cardio Q50 offers extremely high sampling rates (up to 32,000 samples per second in high-resolution mode), providing exceptional signal clarity for precise cardiac assessment. It supports multi-format interpretation, rhythm analysis, beat-to-beat review, and comprehensive filtering to minimize noise and artifacts. With storage for up to 10,000 ECGs, USB/LAN connectivity, and thermal printing on standard 210 mm paper, the Cardio Q50 is engineered for modern outpatient clinics, cardiology practices and hospital diagnostic units.

• 8" TFT LCD touchscreen for waveform visualisation and system navigation
• 12-lead diagnostic ECG acquisition
• High-resolution sampling: up to 32,000 samples per second (high-resolution mode)
• Advanced diagnostic ECG interpretation
• Rhythm, beat-to-beat and average reporting formats
• Internal storage: Stores up to 10,000 ECGs
• Standard 210 mm thermal recording output
• Connectivity options: USB, LAN, external printer support
• Comprehensive filtering: AC, EMG, baseline wander, low-pass & high-pass filters

• Large 8” touchscreen improves workflow and waveform review
• Ultra-high sampling rates enhance diagnostic accuracy
• Extensive internal storage simplifies patient data management
• Advanced filtering reduces noise for clearer ECG traces
• Ideal for cardiology clinics, internal medicine and hospital ECG departments

12-lead resting ECG examinations in hospitals, cardiology clinics, outpatient departments, emergency units and diagnostic centres.

Manufactured under ISO 13485 certified quality system. CE-marked and FDA-cleared ECG device; national registrations may vary.

Other Products From Bionet

SonoMe 14L

SonoMe H10L

SonoMe H5C10L

The post Cardio Q50 first appeared on NOOR SCIENTIFIC & TRADE.

Bionet

Mostafa Refaay — Sat, 30 Sep 2023 16:00:59 +0000

Bionet

Cardio Q70

Premium 12‑lead resting ECG with a 10.1″ capacitive TFT LCD touchscreen, ultra‑high sampling resolution, multi‑format ECG interpretation and extensive internal storage for advanced clinical cardiac diagnostics.

The post Bionet first appeared on NOOR SCIENTIFIC & TRADE.

Cardio7

Mostafa Refaay — Sat, 30 Sep 2023 15:44:20 +0000

Cardio7

Cardio7 is an advanced 12-lead resting ECG device engineered by Bionet to provide high-accuracy signal acquisition and reliable interpretation for hospitals, clinics and diagnostic centres. Its 7” TFT LCD touch screen offers clear waveform visualisation and an intuitive interface designed to improve workflow efficiency.

With high-resolution signal processing, comprehensive interpretation algorithms and multiple report formats, Cardio7 supports accurate rhythm analysis, arrhythmia detection and measurement review. The system provides internal memory, USB data export and PC connectivity, enabling flexible data management and integration with clinical workflows.

Its compact design, accurate ECG acquisition and advanced software features make Cardio7 suitable for cardiology departments, emergency rooms, outpatient clinics and general diagnostic environments.

• 7" TFT LCD touch screen for waveform and data display
• 12-lead resting ECG acquisition
• High-resolution signal processing with noise filtering
• Comprehensive ECG interpretation and arrhythmia analysis
• Selectable and customizable report formats
• Internal memory storage and USB data export
• PC connectivity for extended data management
• Supports adult and paediatric ECG examinations
• Compact, clinic-friendly design

• Provides accurate ECG results with advanced analysis capabilities
• Touch-screen interface enhances workflow speed and ease of operation
• Connectivity options support modern data management needs
• Compact design integrates well into hospital and clinic environments
• Suitable for routine and specialised ECG diagnostic applications

12-lead resting ECG examinations in hospitals, outpatient clinics, cardiology practices, emergency rooms and general-practice facilities.

Manufactured under ISO-certified quality systems. CE-marked 12-lead ECG device; national regulatory approvals may vary.
