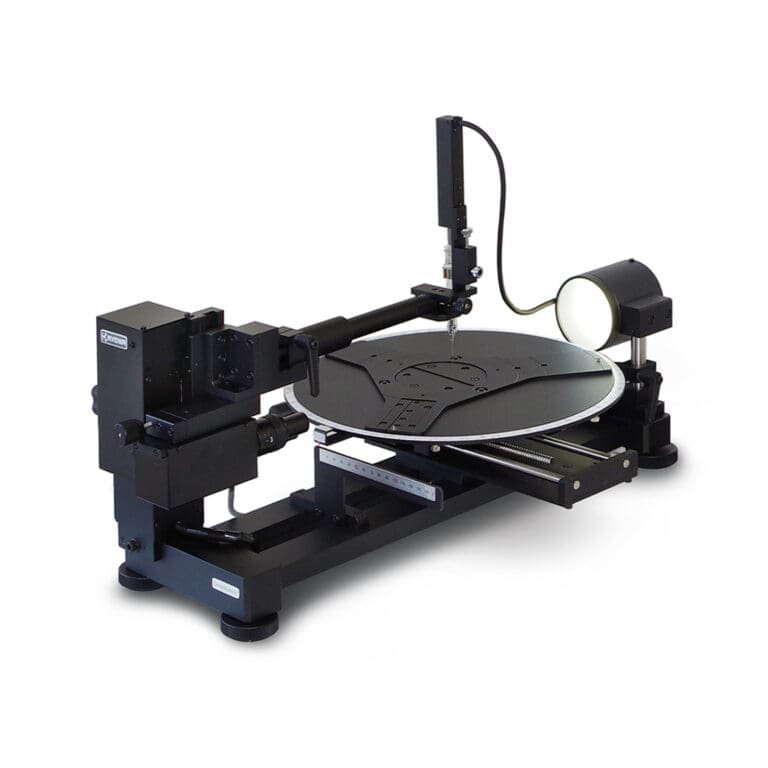

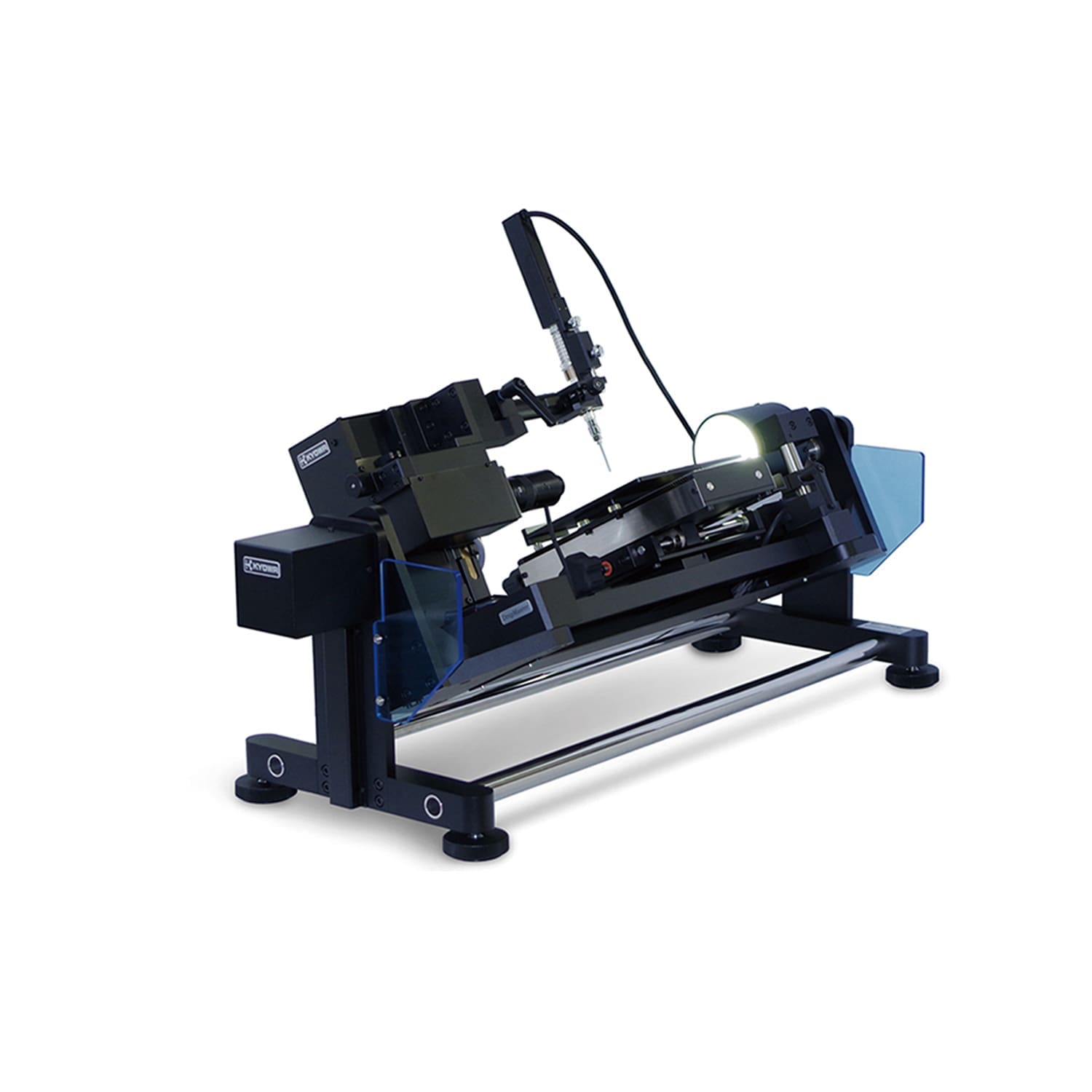

Contact Angle Meters
Kyowa Interface Science Co., Ltd – Japan
Technical Specifications
• Fast image capturing system with standard 400 fps at 640×480 resolution USB3.0 CMOS camera, max. 1000 fps at 640×200 resolution.
• Automatic single dispenser system.
• 150x150mm wide sample stage with a maximum load capacity (temperature chamber + sample) of 1.4kgs.
• Stage travel distance: x-axis 150mm, y-axis 75mm, z-axis fixed.
• Focusing aid with displayed index graph and value and brightness adjustment to achieve perfect focus.
Application
• Determination of wettability of surfaces like glass, metal, plastics, ceramics etc..
• Determination of surface and interfacial tension using the Pendant Drop kit.
• Analysis of surface free energy of solids.
