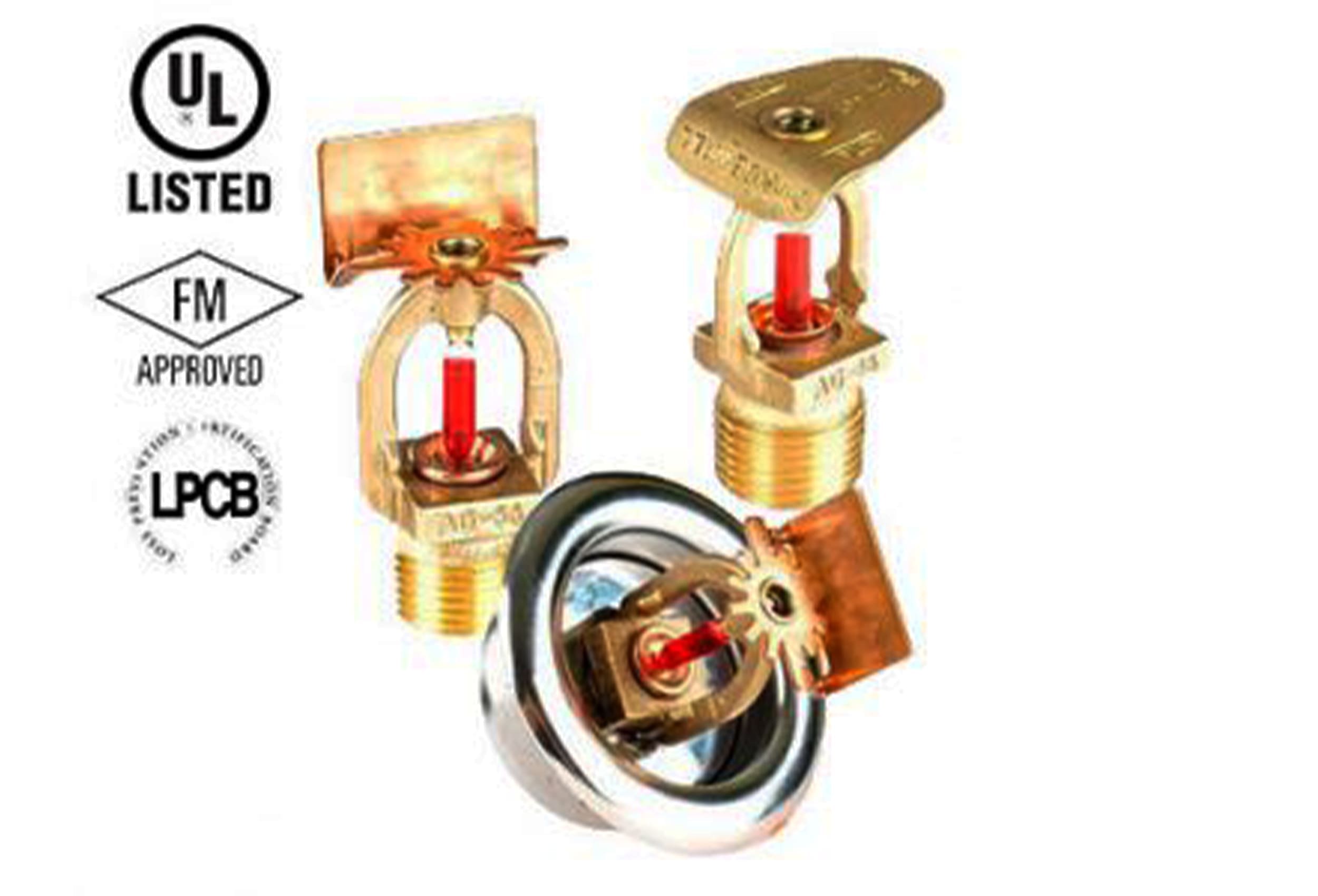

Sidewall Sprinkler Standard Coverage

AG Fire Sprinkler’s Standard Coverage Sidewall Sprinklers
Available As Horizontal, Vertical, or Recessed
Models:
-Standard Response K80 Sidewall Sprinkler – GA5670
-Quick Response K80 Sidewall Sprinkler – GA5626
-Standard Response K115 Sidewall Sprinkler – GA8171
-Quick Response K115 Sidewall Sprinkler – GA8127
Approvals/Certifications:
– UL Listed
– FM Approved
– LPCB Certified
Heat Sensitive Element: Liquid Filled Glass Bulb
Heat Sensitivity:
-Standard Response (5 mm Glass Bulb)
-Quick Response (3mm Glass Bulb)
K Factor:
-K80 (5.6)
-K115 (8.0)
Temperature Rating:
57 °C – 182 °C
Working Pressure:
– 175 psi (12 bar)
End Connection:
– 1/2” NPT Male Threading For K80
– 3/4” NPT Male Threading For K115
Finish:
– Bronze/Brass
– Chrome
– Polyester
