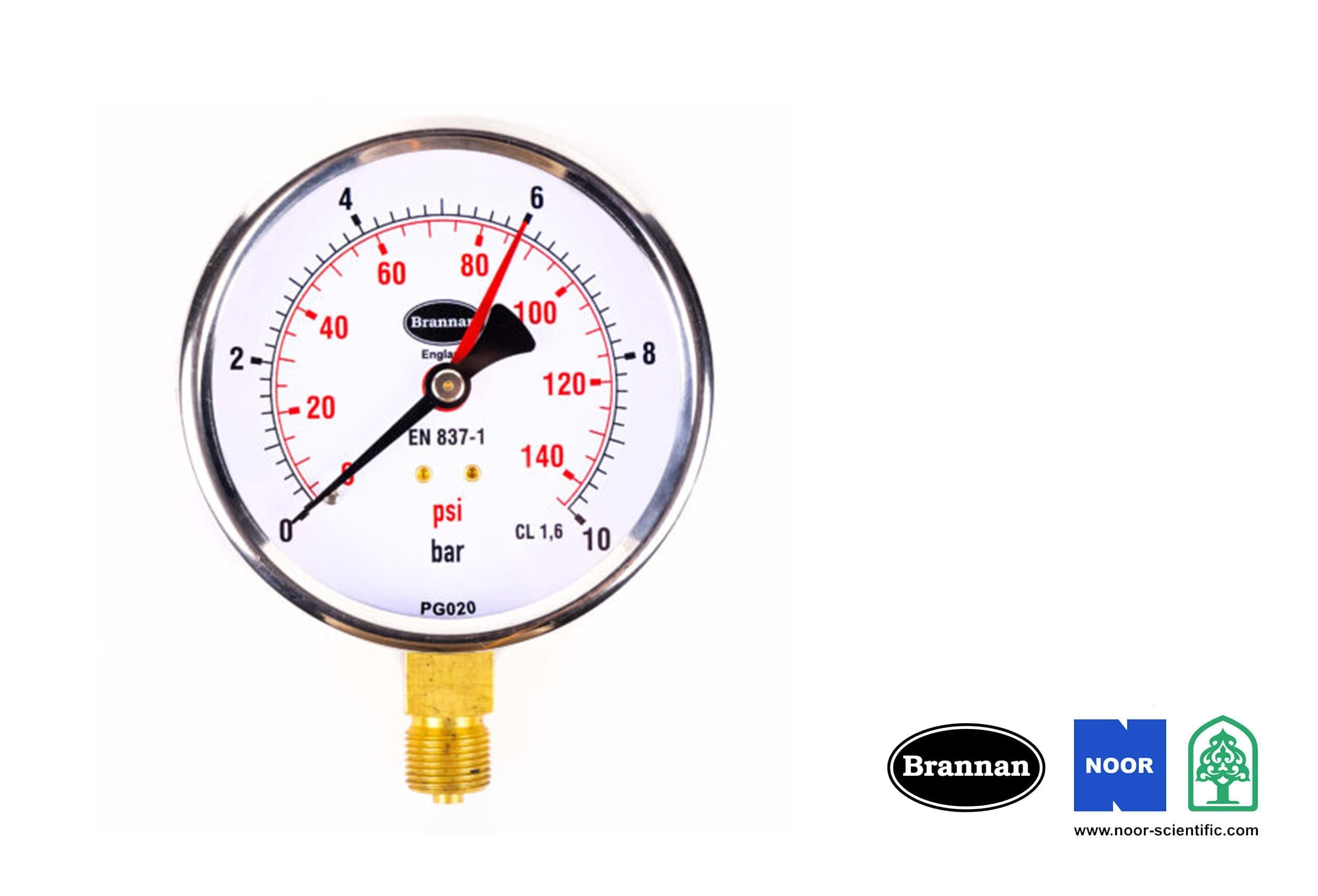

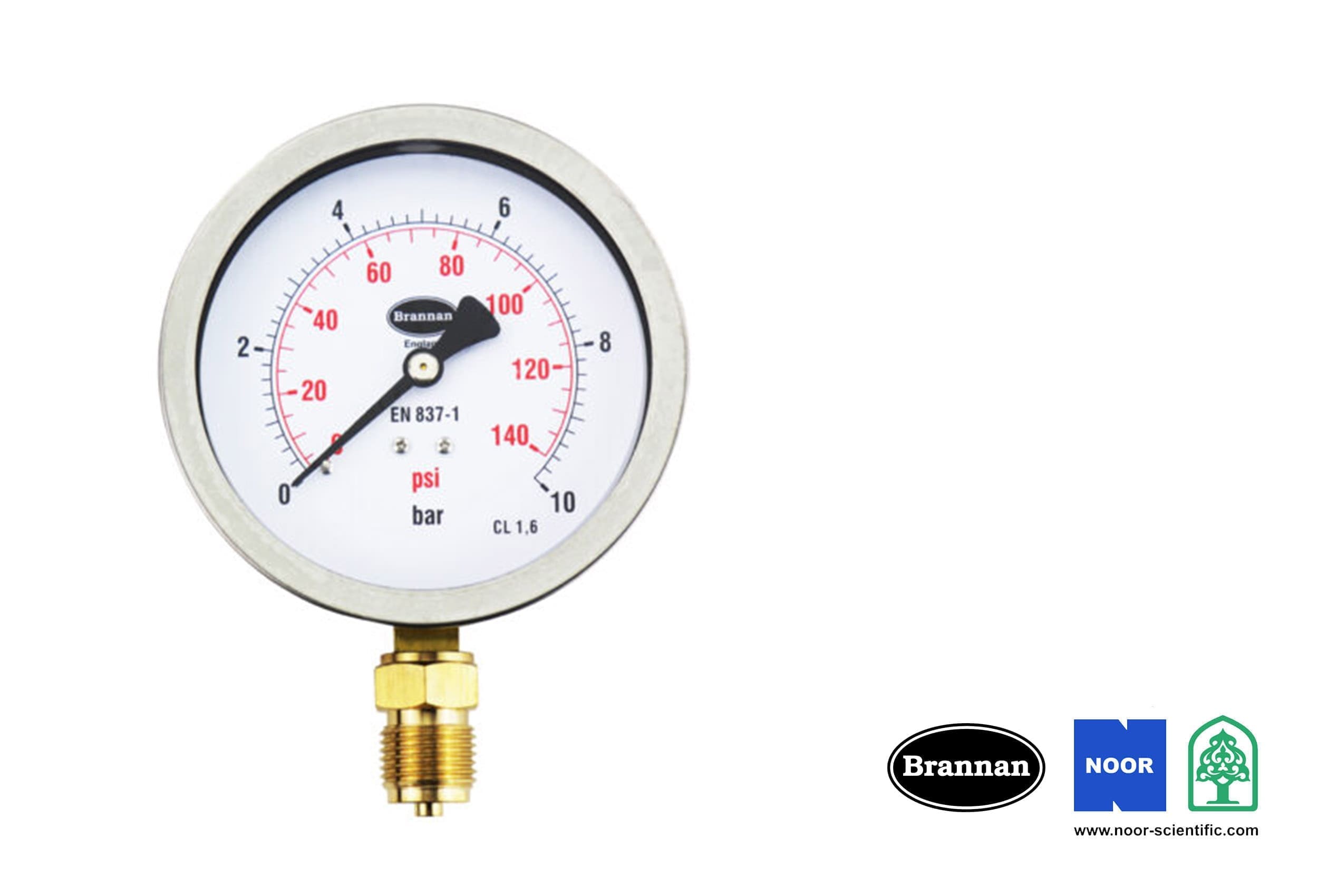

Commercial Pressure Gauge (PG020)

The Brannan PG020 is a robust, precision-engineered commercial pressure gauge designed for reliable performance in heating, ventilation, pneumatic, and plumbing systems. Built with a black steel case, brass connection, and Cu-Alloy Bourdon tube, it provides accurate readings across a wide range of pressures with superior Brannan quality and durability.
  • 🔹 Standards: BS EN 837 / ASME B40.100.
  • 🔹 Construction: Black steel case, stainless steel bezel (100 mm), brass connection.
  • 🔹 Dial Sizes: 100 mm and 150 mm.
  • 🔹 Connection: Bottom or centre back (3/8” & 1/2” BSP/NPT/BSPT).
  • 🔹 Measuring Element: Cu-Alloy Bourdon tube.
  • 🔹 Accuracy: Class 1.6% (Class 1.0 available).
  • 🔹 Window: Acrylic or glass (model dependent).
  • 🔹 Pressure Range: -1 to 9 bar to 0–700 bar (0–10,150 psi).
  • 🔹 Temperature Range: Ambient/Medium -20°C to +60°C.
  • 🔹 Protection Class: IP43.
  • 🔹 Safety: S1 (blow-out device gauge).
  • 🔹 Calibration: Optional UKAS certification or national traceable conformity.
  • 🔹 Delivers consistent and accurate pressure monitoring.
  • 🔹 Suitable for general and commercial applications.
  • 🔹 Strong steel housing for impact resistance.
  • 🔹 Compact and versatile for multiple orientations.
  • 🔹 Optional calibration ensures compliance and precision.
  • 🔹 Long service life with minimal maintenance.
  • 🔹 HVAC and plumbing systems.
  • 🔹 Compressors and pneumatic equipment.
  • 🔹 Air filtration units.
  • 🔹 Industrial process control.
  • 🔹 Pressure monitoring in mechanical and building services.
  • 🔹 BS EN 837 and ASME B40.100 design compliance.
  • 🔹 Safety Category S1 – blow-out protection design.
  • 🔹 UKAS Calibration Certificate (optional, 5-point or traceable to national standards).
  • 🔹 CE compliant for industrial instrumentation use.
  • 🔹 Manufactured under ISO 9001-certified quality management.
