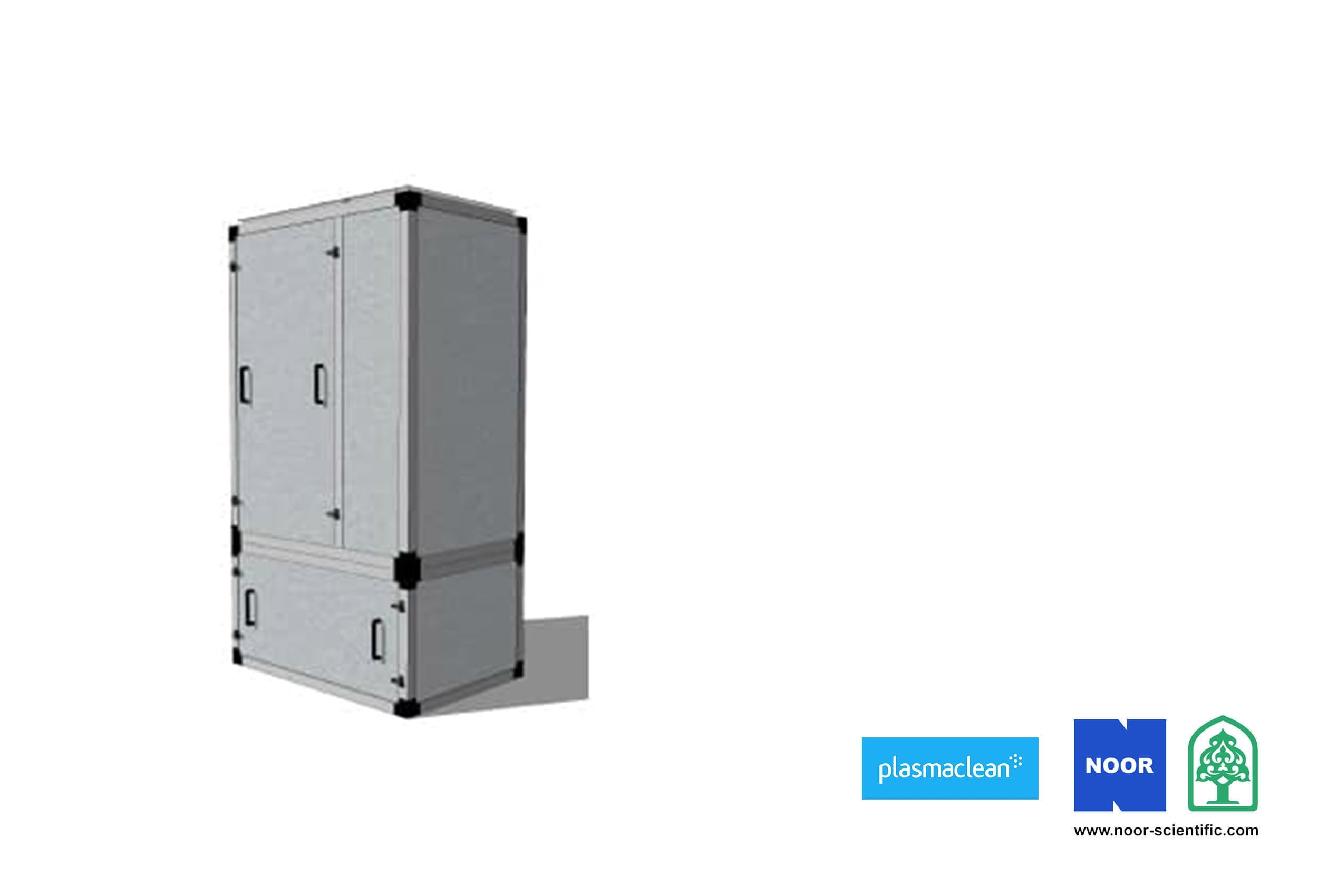

ESP Air Green (AG Series)

  • 🔹 The ESP Air Green (AG Series) From Plasma Clean Air  is an advanced electrostatic precipitator range developed to outperform standard ESP technologies. The system incorporates dual-polarity ionization, enabling both positively and negatively charged particle capture—unlike conventional honeycomb systems that leave up to 20% of particles untreated.
  • 🔹 Each unit features an extra-depth collector cell and stainless-steel spiked ionizers that significantly improve particulate capture efficiency, making AG units up to twice as effective as many competitor products. With low pressure drop, solid-state power supplies, and robust galvanized steel construction, these ESPs provide reliable long-term operation in demanding kitchen extraction systems.
  • 🔹 The AG Series offers multiple capacities from 3,500 CMH to 16,000 CMH, allowing scalable installation in duct-mounted configurations for small, medium, and large commercial kitchens.
  • 🔹 Extra-depth collector cell for significantly higher capture efficiency
  • 🔹 Dual-polarity ionization for improved particle charging
  • 🔹 Stainless-steel spiked ionizers for extended equipment life
  • 🔹 Solid-state high-frequency power supply
  • 🔹 Low pressure drop: ~65–90 Pa per pass
  • 🔹 Particle size removal: 0.01 to 10 microns
  • 🔹 Efficiency:
  • 🔹 Up to 95% (ASHRAE 52.2)
  • 🔹 Up to 99% (double-pass—calculated)
  • 🔹 Welded galvanized steel housing (18–16 gauge)
  • 🔹 Blue epoxy powder-coated finish (RAL 5017)
  • 🔹 Single-phase input: 220–240 V / 50 Hz
  • 🔹 Power switch with indicator light
  • 🔹 Standard aluminium mesh pre-filter
  • 🔹 Forever-filter ionizer/collector cell
  • 🔹 Optional heavy oil pre-filter
  • 🔹 Optional activated carbon after-filter
  • 🔹 Multiple units joinable for increased volume
  • 🔹 Captures both positive and negative ionized particles for superior efficiency
  • 🔹 Extra-depth collector cells for improved particulate retention
  • 🔹 Low operating costs due to very low pressure drop
  • 🔹 Long service life with stainless-steel ionizers
  • 🔹 High reliability using solid-state power systems
  • 🔹 Wide capacity range supports scalable installations
  • 🔹 Enhanced grease and smoke removal prevents duct contamination and fire risk
  • 🔹 Supports optional activated carbon filtration for odour reduction
  • 🔹 Commercial kitchens with medium to heavy grease loads
  • 🔹 Restaurants, food courts, cloud kitchens, hotel kitchens
  • 🔹 High-airflow extraction systems requiring 3,500–16,000 CMH
  • 🔹 Installations needing superior smoke and grease removal beyond standard ESPs
  • 🔹 Multi-stage filtration systems
  • 🔹 Sites requiring compact duct-mounted purification units
