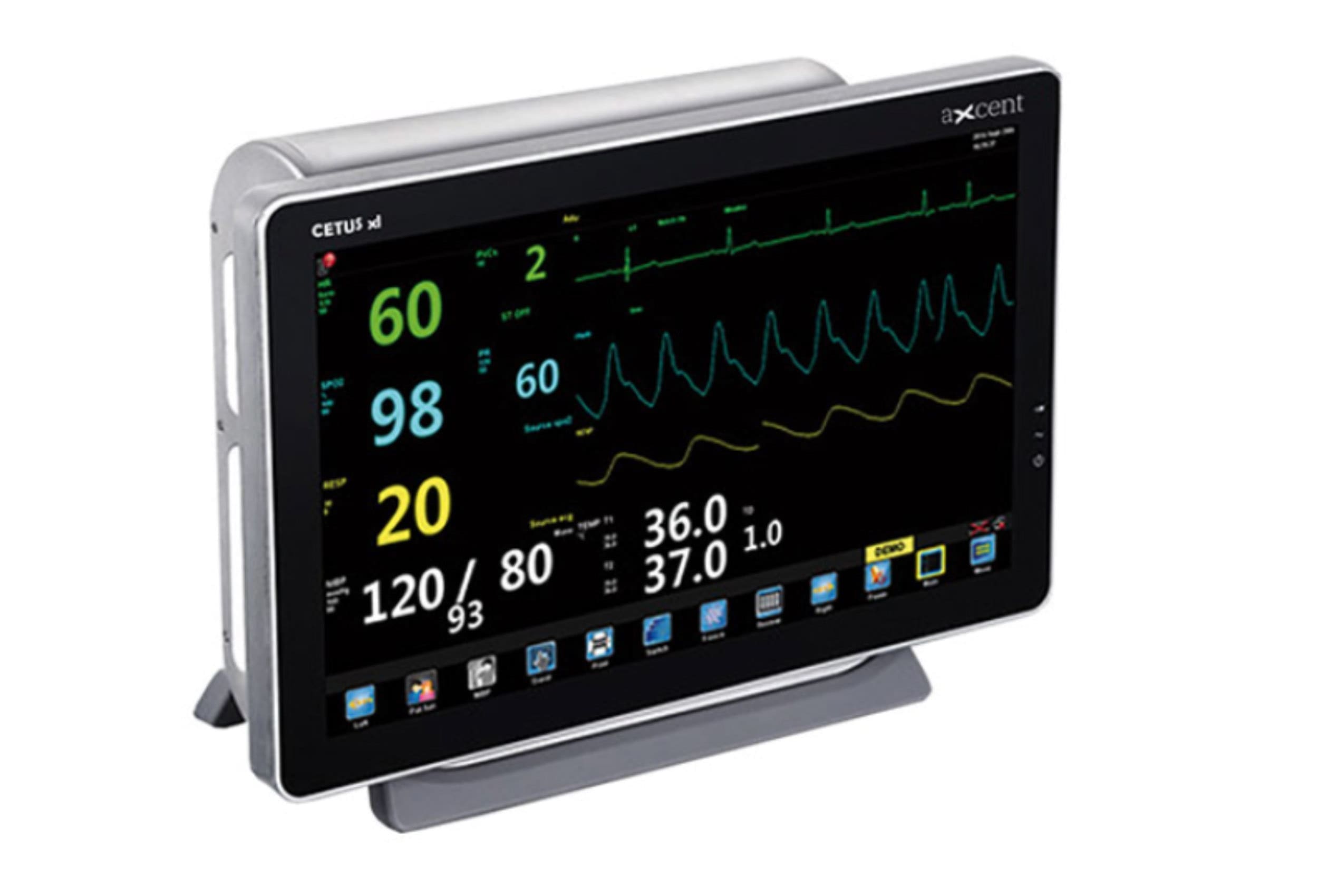

CETUS xl – Advanced Multi-Parameter Patient Monitor
CETUS xl is an advanced multi-parameter patient monitor designed for intensive care, neonatal intensive care, cardiac care and operating room environments. It offers a switchable 15.6” / 17” / 19” TFT LCD touch screen and an aluminium material shell with fanless design, making it suitable for quiet care areas. The monitor provides up to ten simultaneous waveforms with analysis of up to 12-lead ECG and integrates powerful clinical calculation tools for hemodynamic, drug dose, oxygenation and ventilation parameters.
SpO₂ technology supports PVI and PI with low perfusion performance, while optional BISx and NMT modules extend monitoring for anesthesia and neuromuscular applications. The system offers graphical and tabular trend review for up to 120 hours and 48 hours of full disclosure waveform review per patient.
Standard configuration includes a 15.6” display with ECG, analog SpO₂, NIBP, two temperature channels, pulse rate, respiration and lithium-ion battery, with a broad selection of options such as larger displays, Masimo or digital SpO₂, invasive blood pressure, cardiac output, EtCO₂ and multi-gas analysis to adapt the system to different clinical needs.

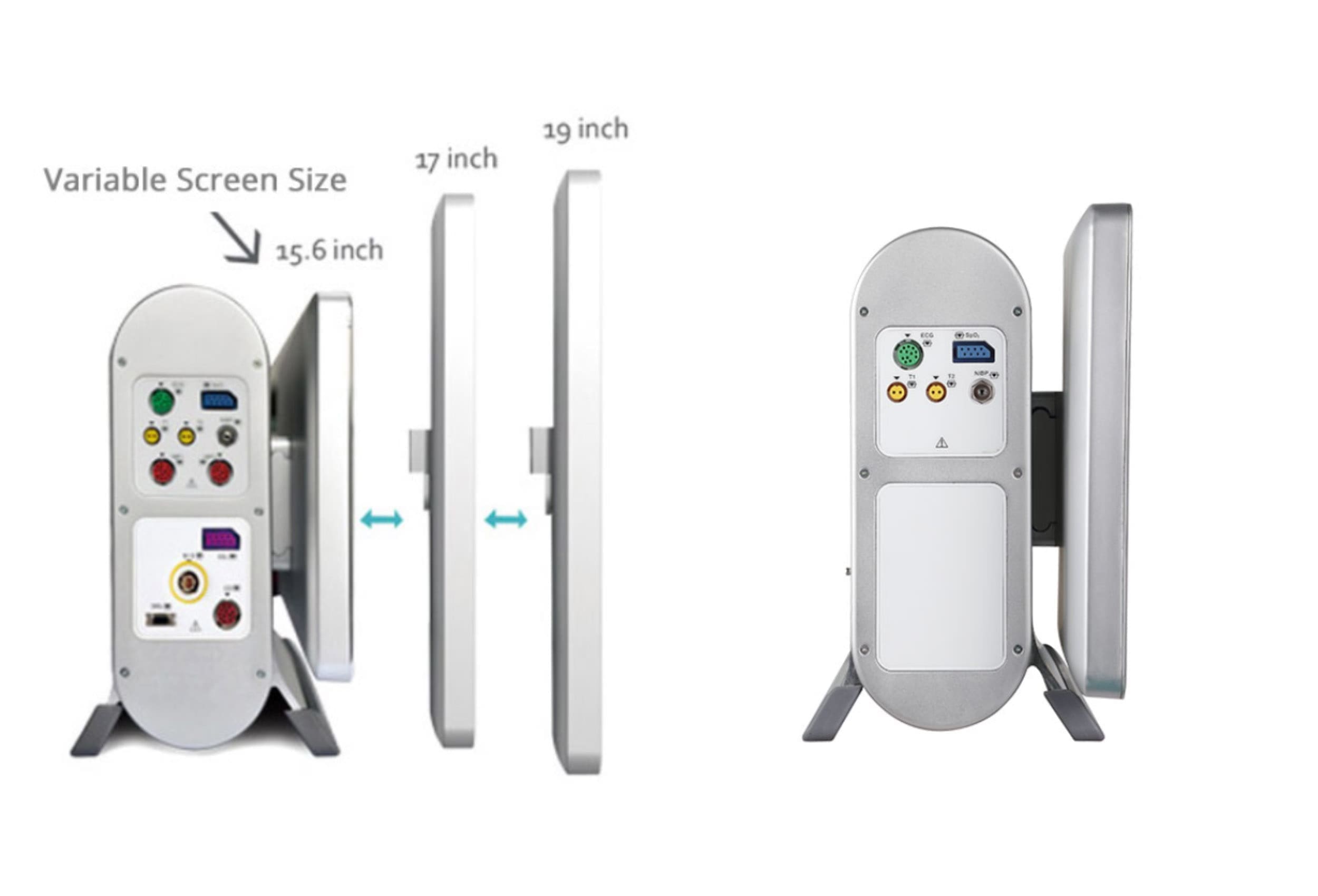

- 15.6” / 17” / 19” switchable TFT LCD touch screen
- Aluminium material shell
- Fanless design suitable for quiet care environments
- 10 waveform display, up to 12-lead ECG analysis
- Clinical calculations for Hemodynamic, Drug Dose, Oxygenation and Ventilation
- SpO₂ supports PVI and PI with low perfusion capability (down to approximately 0.2%)
- Optional Aspect BISx and NMT modules
- Wired/Wireless CMS connectivity with HL7 protocol support to HIS
- SpO₂ pulse-tone modulation (Pitch Tone)
- VGA support for external display; optional HDMI output
- Graphical and tabular trend review up to 120 hours
- 48 hours full disclosure waveform review per patient
- Standard configuration: 15.6” display, ECG, analog SpO₂, NIBP, 2× TEMP, PR, RESP, Li-ion battery
- Optional: 17” or 19” display, touch-screen, 12-lead ECG, digital or Masimo SpO₂, 2/4/6 IBP, cardiac output, EtCO₂ analyzer, multi-gas analyzer, BIS, NMT, HDMI, thermal recorder, wired/wireless CMS
- Multiple screen size and touch options support flexible installation in different critical care areas.
- Fanless aluminium construction promotes quiet operation and durability in demanding environments.
- Advanced clinical calculations help clinicians evaluate hemodynamic status, oxygenation and ventilation in real time.
- Optional BIS and NMT modules broaden the monitor’s use in anesthesia and neuromuscular monitoring.
- Extended trend and full disclosure storage support retrospective analysis and quality of care documentation.
- Highly configurable parameter set allows adaptation to ICU, NICU, CCU and OR monitoring requirements.
- CMS networking and HL7 connectivity enable centralized monitoring and integration with hospital information systems.
Advanced multi-parameter monitoring of adult, pediatric and neonatal patients in ICU, NICU, CCU and operating rooms, as well as other high-acuity hospital departments requiring comprehensive monitoring and extended trend review.
CE-marked medical device under MDD 93/42/EEC (aXcent MDD 93/42/EEC certificate available from the manufacturer).
