Acclarix AX3

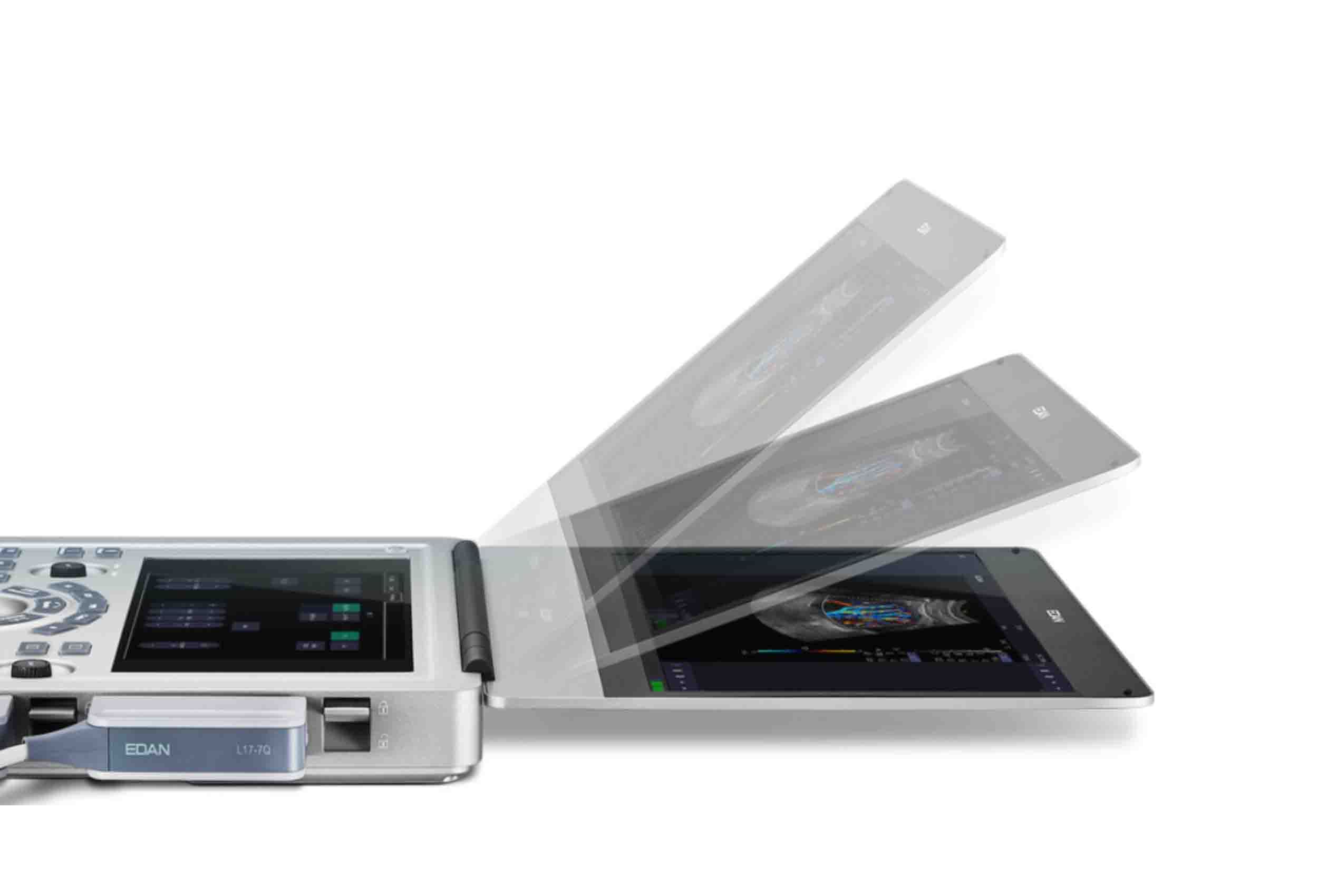

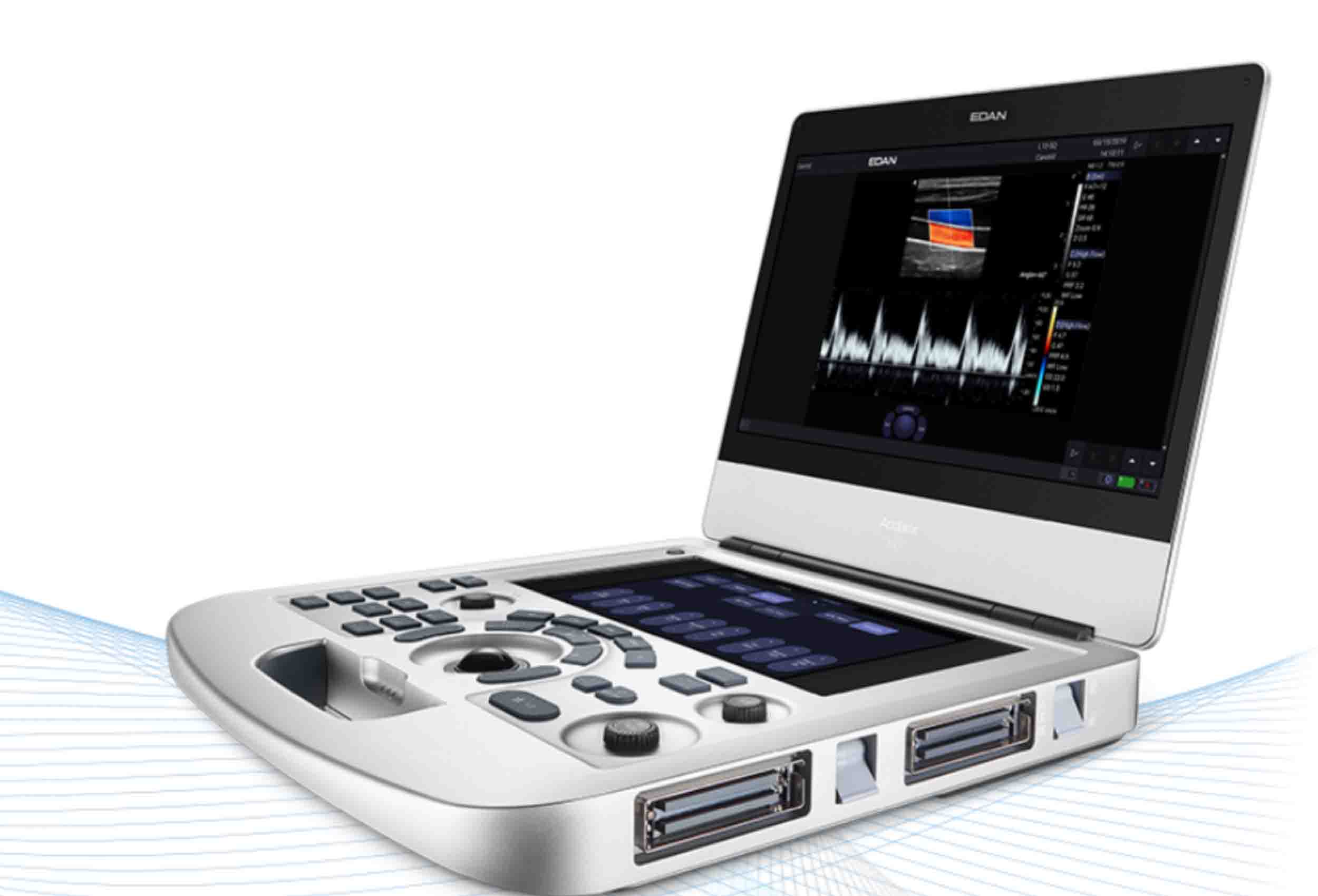

EDAN Acclarix AX3 is a powerful and modern portable ultrasound system designed to deliver high-quality imaging in a compact footprint. Equipped with a 15.6-inch LED display and three active probe ports, AX3 supports rapid workflow across a wide range of clinical departments.
The system integrates advanced imaging technologies including Tissue Harmonic Imaging (THI), Speckle Reduction Technology (SRT) and Spatial Compound Imaging (SCI) to produce clear, high-contrast images. Its comprehensive set of Doppler modes—Color, Power, DPD and PW Doppler—enables detailed vascular and cardiac assessments. AX3 also includes automated measurement tools such as Auto IMT, Auto OB calculations and Auto EF analysis.
AX3 is designed to support abdominal, OB/GYN, MSK, vascular, cardiac, urology and small-parts applications, making it a versatile choice for hospitals, clinics and mobile diagnostic units.
- Display: 15.6" high-resolution LED display
- Probe ports: 3 active probe ports (standard)
- Imaging modes: B, 2B, 4B, M, PW Doppler, Color Doppler (CFM), Power Doppler (PD), Directional Power Doppler (DPD)
- Tissue Harmonic Imaging (THI)
- Speckle Reduction Technology (SRT)
- Spatial Compound Imaging (SCI)
- Auto IMT measurement
- Auto OB measurements
- Auto EF (Ejection Fraction) tool
- Probe compatibility: Convex, linear, phased array, micro-convex, endocavity, TEE (optional) and specialty probes
- Storage: 500 GB internal HDD + USB storage/export
- Connectivity: DICOM 3.0, USB, HDMI, VGA, Ethernet
- Comprehensive calculation packages for OB/GYN, Cardiac, Vascular, Urology, MSK, Abdomen and Small Parts
- Main unit dimensions: 390 × 360 × 70 mm
- Unit weight: Approx. 7.5 kg
- Optional built-in battery
- High-resolution imaging enhances diagnostic accuracy
- Wide range of Doppler modes enables detailed vascular and cardiac evaluation
- Comprehensive automated measurements improve workflow efficiency
- Large 15.6-inch display provides superior image visualization
- Multi-probe capability supports diverse clinical applications
- Advanced image enhancement tools improve contrast and resolution
Abdominal, OB/GYN, cardiac, vascular, MSK, urology, pediatric and general ultrasound imaging in hospitals, clinics and mobile diagnostic services.
ISO 13485 certified. CE-marked ultrasound system.
