Acclarix AX9

1
2

Acclarix AX9 is EDAN’s premium compact ultrasound platform built on the SynSight zone sonography architecture. It combines high-performance imaging, extensive automation and a lightweight design, making it ideal for demanding clinical environments and tight spaces.

The system features a 15.6-inch full HD LED monitor with 0–180° tilt, complemented by a 12.3-inch touchscreen for gesture-based control and intuitive workflow. With 128 physical channels, up to 2,949,120 digital channels, a six-core Intel i7 processor and 32 GB of memory, AX9 delivers fast, responsive imaging performance.

Acclarix AX9 supports a full suite of imaging modes including B-mode, M-mode, anatomic M-mode, Color and Power Doppler, PW and CW Doppler, and multiple Tissue Doppler modes. Advanced image processing features such as Harmonic Imaging, Spatial Compounding, Frequency Compounding and eSRI Speckle Reduction Imaging provide excellent contrast and spatial resolution.

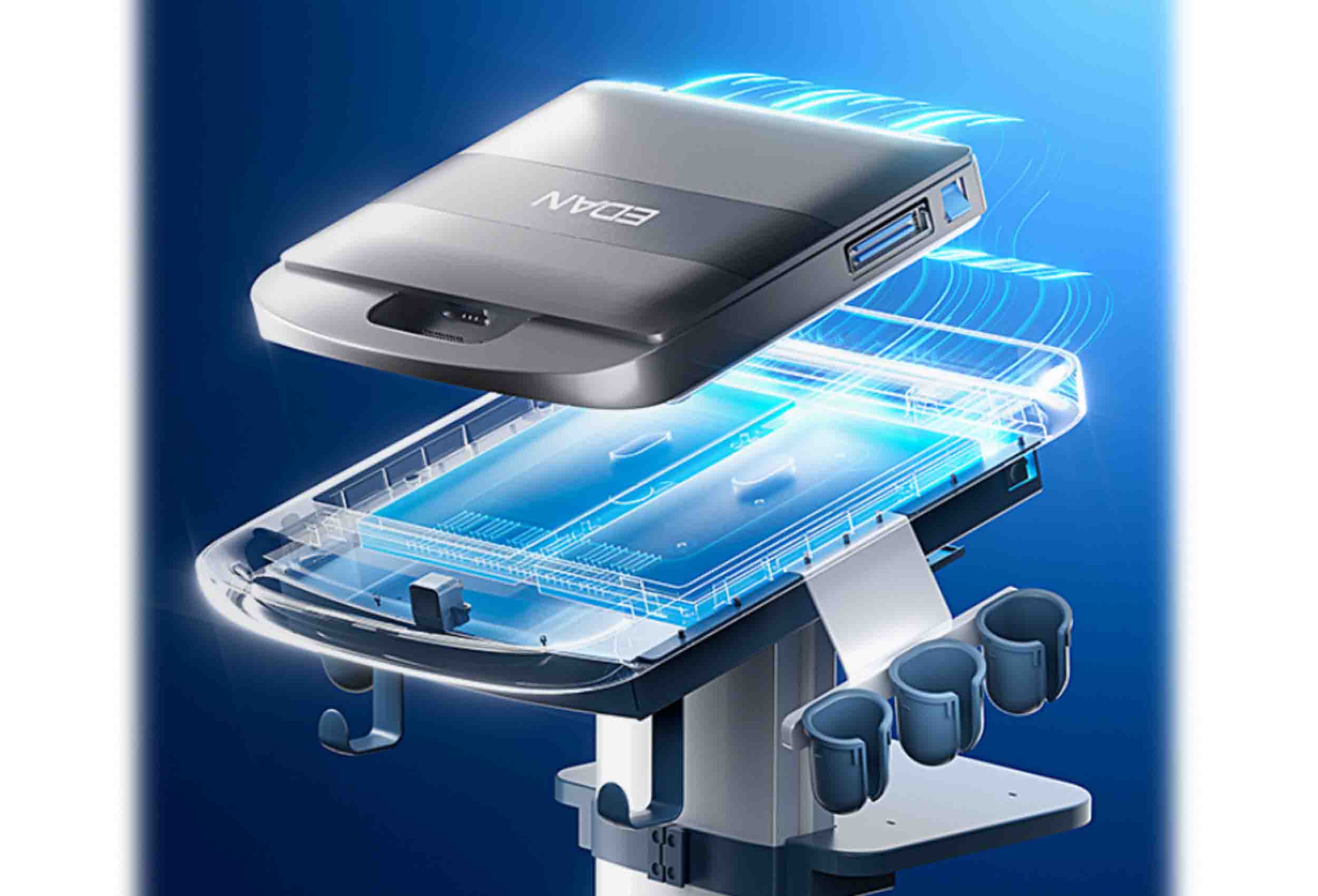

With one active probe port standard and up to three active ports with the Multi-Transducer Connector (MTC), the system is suited for abdominal, OB/GYN, vascular, cardiac, MSK, urology, pediatric and small-parts examinations.

  • Main display: 15.6" high-resolution LED monitor (1920 × 1080), 0°–180° tilt

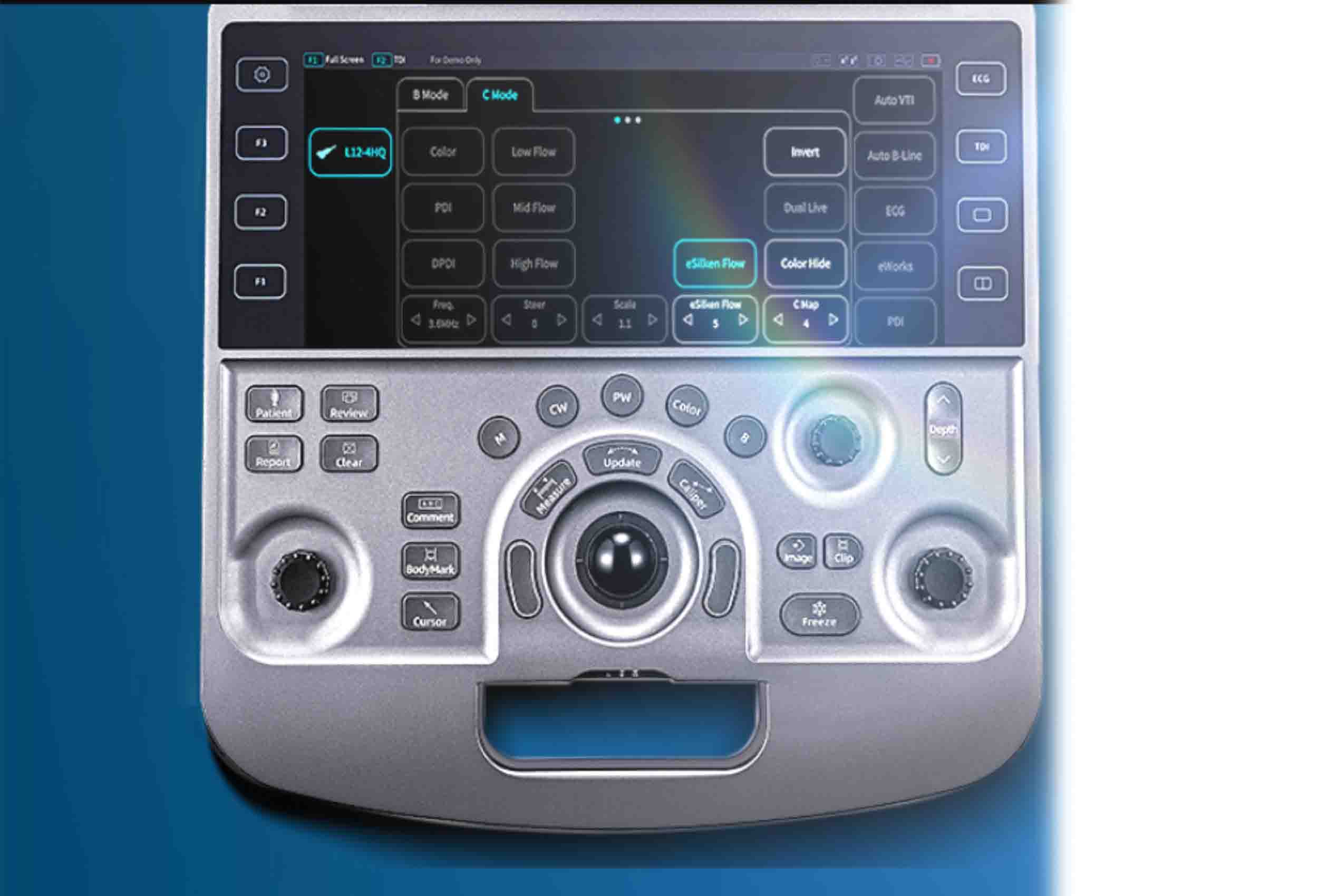

  • Touch interface: 12.3" touch screen with gesture control
  • Physical channels: 128 physical channels
  • Digital channels: Up to 2,949,120 digital channels
  • Processor: Intel i7 six-core processor
  • System memory: 32 GB system memory
  • Storage: 512 GB SSD (standard), 1 TB SSD (optional)
  • Dimensions: Approx. 380 × 380 × 63 mm (W × D × H, without cushions)
  • Net weight: 4.8 kg (without accessories), 5.8 kg (with two batteries)
  • Batteries: Two removable Li-ion batteries, total 13,600 mAh, approx. 2 hours typical use
  • Active transducer ports: 1 active port standard, up to 3 active ports with MTC
  • Frequency range: 1–17 MHz (probe-dependent)
  • Imaging depth: 1–45 cm (probe-dependent)
  • Maximum frame rate: Up to 409 fps (linear probe, specific settings)
  • Imaging modes: B, M, Anatomic M, Color Doppler, Power Doppler (PDI), Directional PDI, PW Doppler, CW Doppler, TDI modes
  • Advanced imaging technologies: SynSight platform, Tissue Adaptive Imaging (TAI), Frequency & Spatial Compounding, Harmonic Imaging, eSRI Speckle Reduction Imaging, Digital multi-beam forming, Extended FOV, Trapezoid Imaging
  • Automated clinical tools: One-key optimization, Auto EF & Auto EF(M), Auto Strain, Auto WMSI, Auto LVOT-D, Auto VTI, Auto IVC, Auto IMT, Auto B-Line, eDiam, eStenosis%, eVol.Flow, Stress Echo, Live VF, eWorks, eVocal, eDemo
  • I/O ports: USB 3.0 ×4, USB 2.0 ×1, HDMI, Ethernet, S-Video
  • High-end compact design delivers premium imaging in a portable form factor
  • Large 15.6-inch monitor and 12.3-inch touchscreen enhance ergonomics and workflow
  • Powerful hardware platform supports fast image processing and advanced features
  • Comprehensive Doppler and TDI capabilities support detailed cardiovascular assessment
  • Extensive automation improves efficiency, consistency and reproducibility
  • Multi-port transducer support enables broad multi-specialty clinical use

Abdominal, OB/GYN, cardiac, vascular, MSK, pediatric, neonatal, urology, small-parts and general ultrasound examinations in hospitals, clinics and high-performance point-of-care settings.

Designed and manufactured under ISO 13485 quality system. CE/MDR Class IIa and FDA Class II diagnostic ultrasound device.
