SE‑2003
EDAN SE-2003 is a 3-channel Holter ECG system designed for long-term ambulatory cardiac monitoring. The compact recorder provides digital 3-channel ECG acquisition with real-time waveform display on its OLED screen, allowing verification of signal quality at hook-up. Weighing only about 50 g and featuring an IP27-rated waterproof and dustproof housing, the recorder is comfortable for patients to wear during normal daily activities.
Depending on the selected sampling rate and configuration, SE-2003 supports up to 8 days of continuous ECG recording using a single AAA battery. Data are stored on a micro SD card and can be transferred to the Holter analysis workstation via USB cable or card reader. The analysis software provides full disclosure review, automatic and manual editing, and extensive diagnostic tools including arrhythmia analysis, ST-segment analysis, atrial fibrillation analysis, heart rate variability indices and heart rate turbulence evaluation.
With advanced graphical tools such as R-R histograms, waveform superposition heat maps and Lorenz plots, the SE-2003 Holter system helps clinicians detect and characterize complex rhythm disturbances efficiently.
- 3-channel digital Holter ECG recording
- Lightweight recorder design (approx. 50 g)

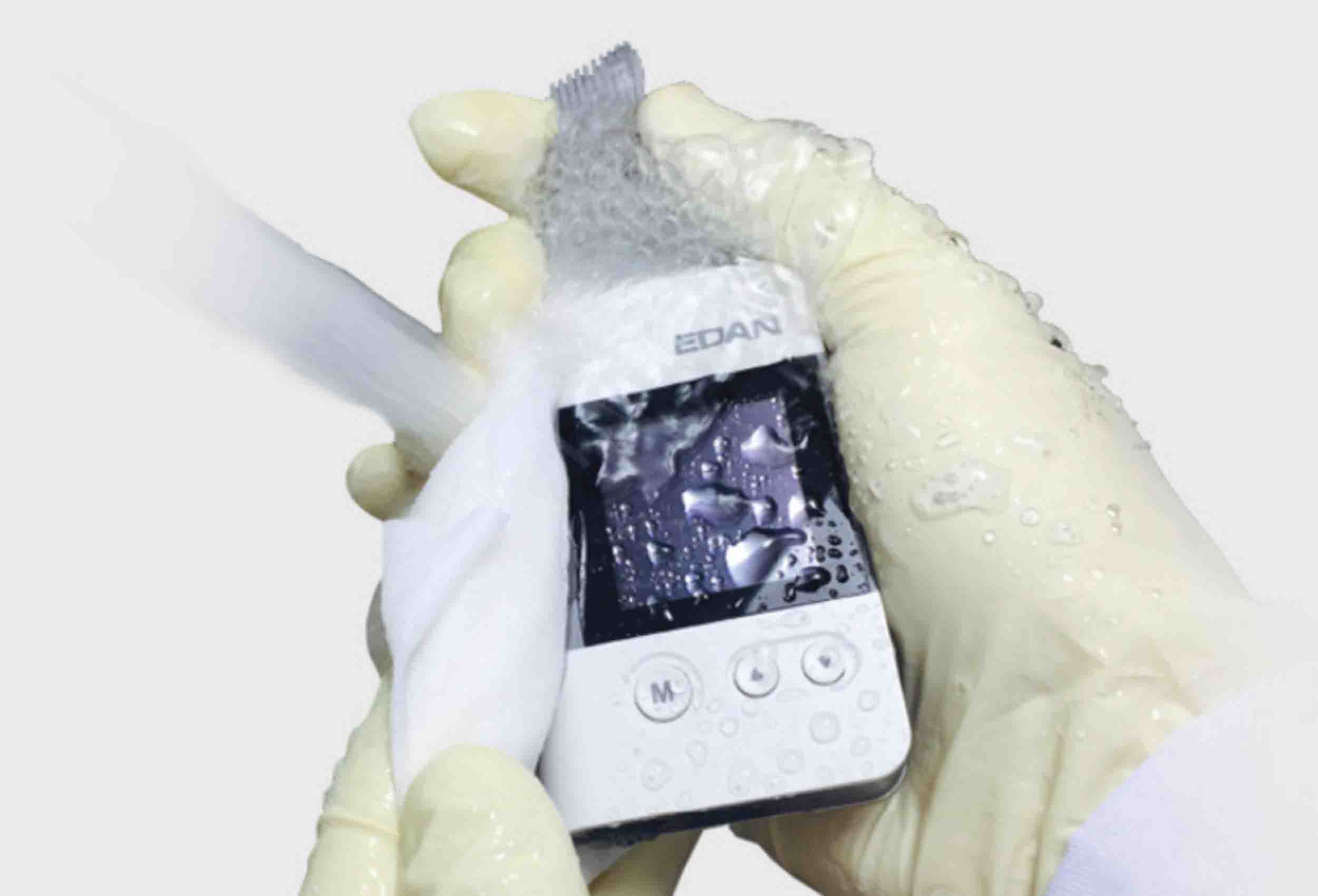

- IP27 waterproof and dustproof housing

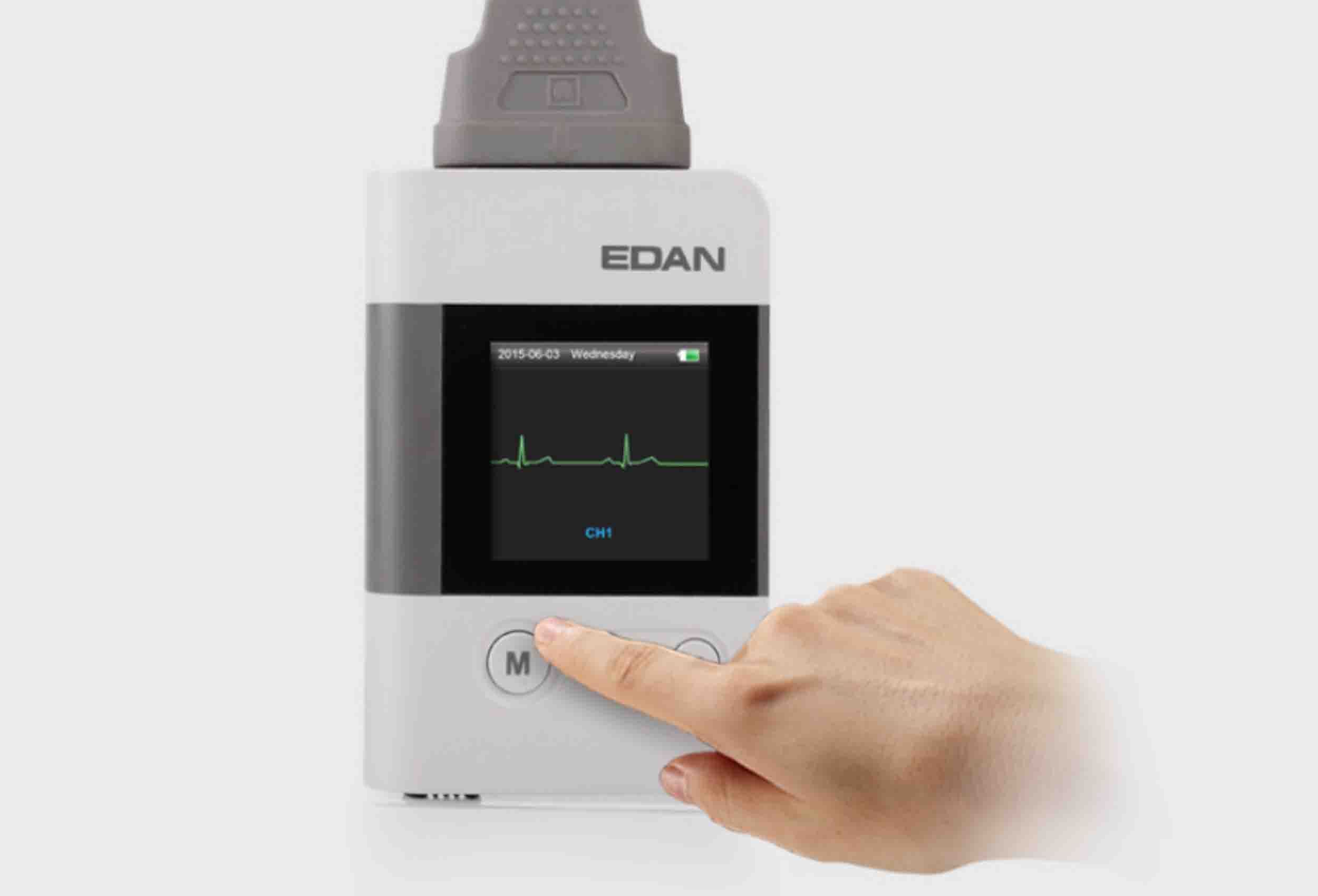

- Real-time waveform display on OLED screen
- Up to 8 days continuous recording with a single AAA battery
- Data storage on micro SD card
- Data download via micro SD card or USB cable
- Pacemaker pulse detection support
- Adjustable sampling rates for different recording protocols
- Comprehensive Holter analysis software with graphics and trends
- Full disclosure of recorded ECG waveforms
- Automatic and manual editing of ECG data
- Arrhythmia and ST-segment analysis tools
- Atrial fibrillation and heart rate turbulence analysis
- Optional advanced analysis such as vector ECG, ventricular late potentials and T-wave alternans (depending on configuration)
- True 3-channel Holter system for long-term ECG monitoring
- Very lightweight and compact recorder improves patient comfort
- Waterproof design supports everyday activities and easier cleaning
- Up to 8-day recording reduces the need for repeated hook-ups
- Powerful software shortens analysis time and supports detailed diagnosis
- Advanced diagnostic tools help identify complex arrhythmias and ischemic episodes
Ambulatory Holter ECG monitoring for arrhythmia detection, ischemia evaluation, atrial fibrillation screening, syncope work-up and long-term cardiac rhythm assessment in cardiology clinics and hospitals.
Manufactured under ISO 13485 quality management system. CE-marked Holter ECG device.
