U60

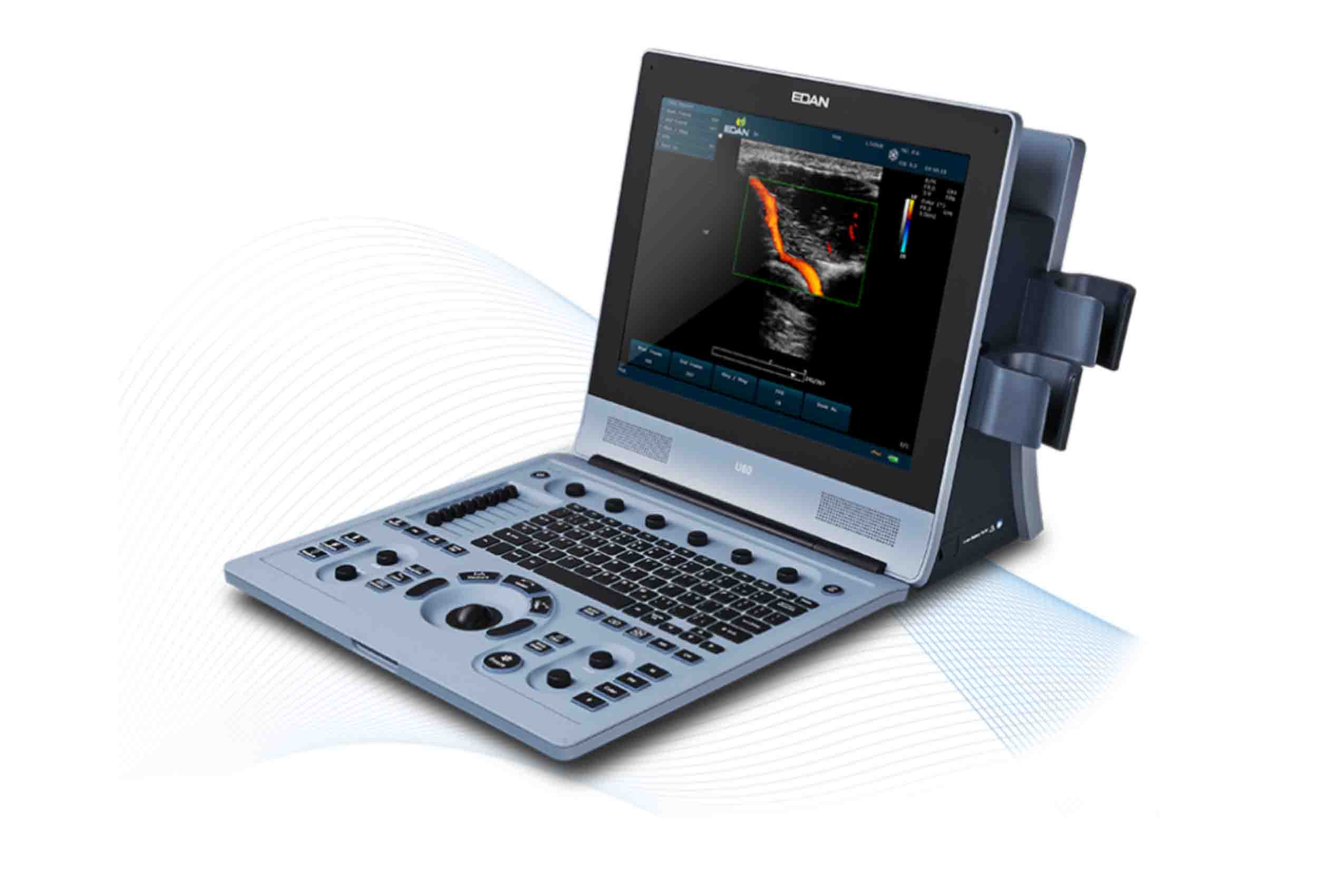

The EDAN U60 is a high-performance portable ultrasound system designed for hospitals and clinics requiring advanced imaging quality in a compact, mobile form factor. Equipped with a 15-inch LED display, U60 supports a wide range of imaging modes including B-mode, Color, Power Doppler, PW, M-mode and Spatial Compound Imaging.

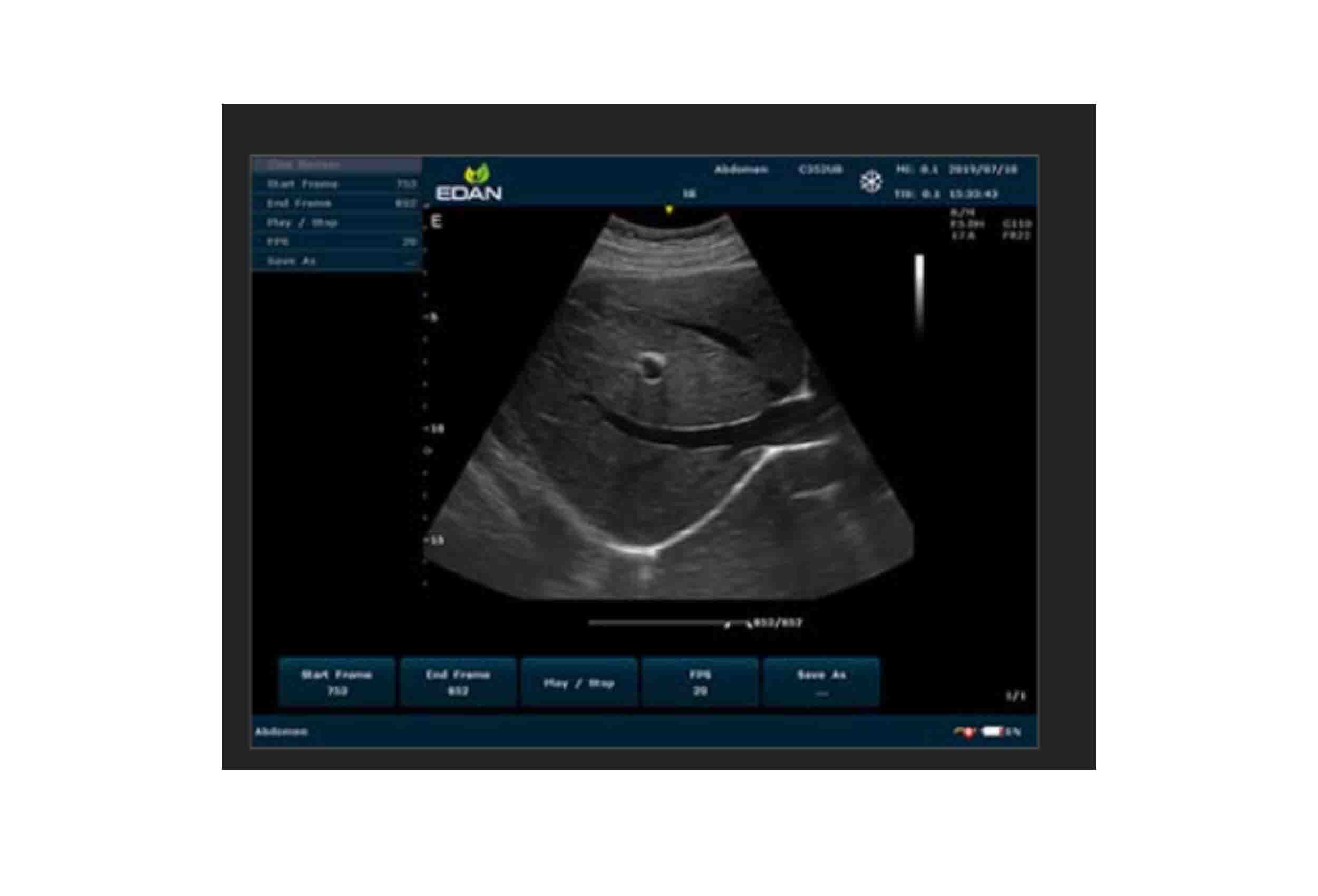

The system provides advanced imaging technologies such as Tissue Harmonic Imaging (THI), Speckle Reduction Technology (SRT) and Spatial Compound Imaging (SCI) to deliver sharper images with improved contrast resolution. With support for up to 3 active probe ports, U60 accommodates a broad range of probes for abdominal, OB/GYN, vascular, cardiac, MSK, urology and pediatric applications.
Designed with strong workflow capabilities, U60 offers a large storage drive, USB export, integrated measurement packages and DICOM 3.0 connectivity, making it suitable for general imaging through specialty departments.
- Display: 15" LED high-resolution display
- Probe ports: Up to 3 active probe connectors
- Imaging modes: B, 2B, 4B, M, PW, Color, Power Doppler, Directional Power Doppler
- Tissue Harmonic Imaging (THI)
- Speckle Reduction Technology (SRT)
- Spatial Compound Imaging (SCI)
- Comprehensive measurement packages: OB/GYN, Cardiac, Vascular, Urology, MSK and General
- Storage: 500 GB internal HDD + USB export
- Main unit dimensions: 390 × 360 × 70 mm
- System weight: Approx. 7.5 kg (configuration dependent)
- Connectivity: DICOM 3.0, USB, VGA, HDMI, Ethernet
- Probe compatibility: Convex, linear, phased array, micro-convex, endocavity and specialty probes
- Optional built-in battery
- Advanced imaging performance in a portable form factor
- Large 15-inch display enhances diagnostic confidence
- Multi-probe capability supports broad clinical coverage
- Comprehensive calculation packages suit multiple departments
- DICOM networking enables efficient data management and reporting
- Advanced image processing tools improve clarity and resolution
Abdominal, OB/GYN, cardiac, vascular, MSK, urology, pediatric and small-parts ultrasound examinations in hospitals, clinics and mobile care.
ISO 13485 certified. CE-marked ultrasound system.
