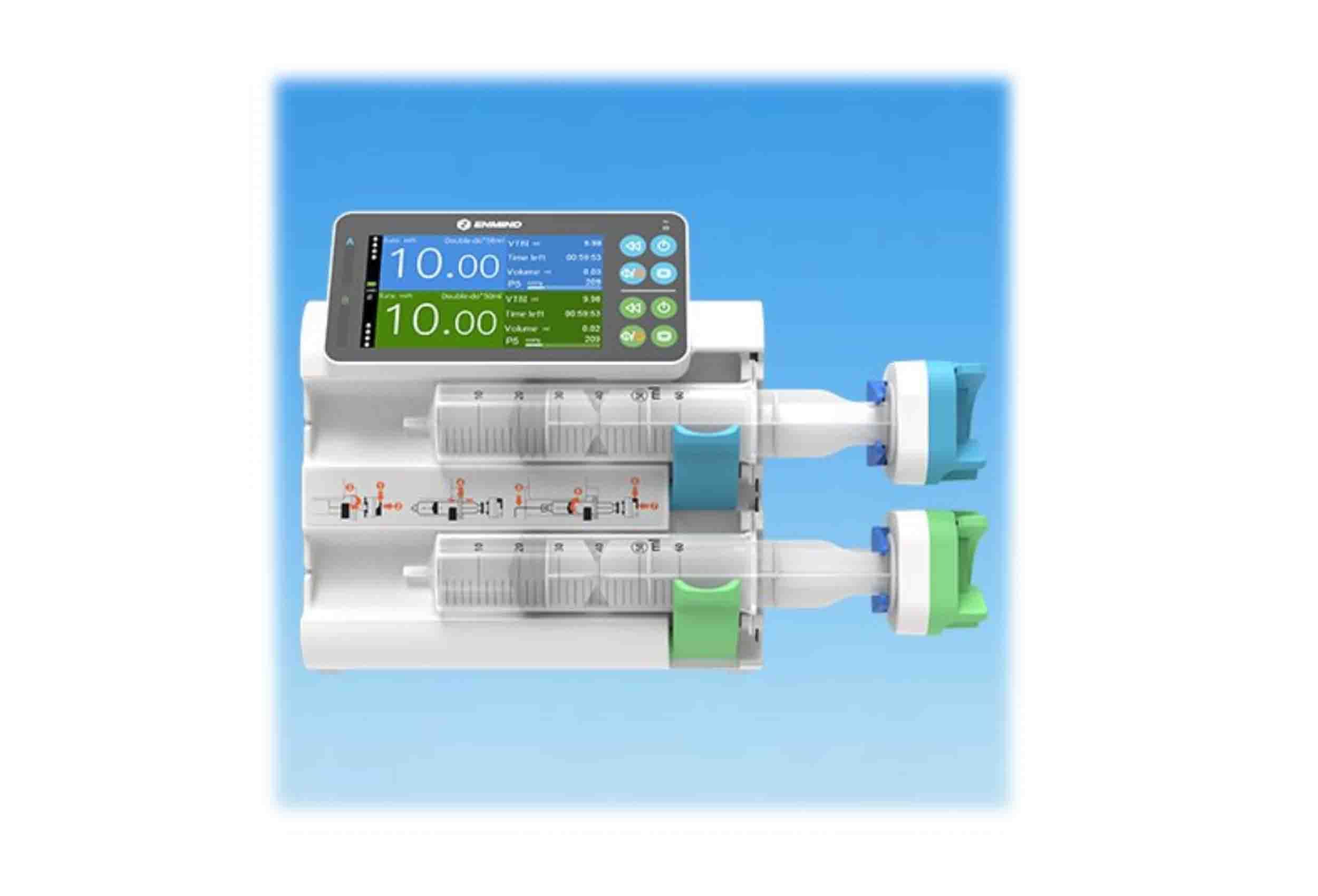

EN‑S5D
EN-S5D is a dual-channel syringe pump built for critical care, general wards, pediatrics, neonatology, operating rooms and emergency/transport applications. The system provides precise flow control with a 0.1–2000 mL/h range and ±2% accuracy, with a high-visibility 4.3-inch color touch screen for intuitive operation.
The pump supports syringe sizes from 2 mL to 60 mL, automatically identifying syringe calibration to ensure accuracy. Multiple infusion modes—including Rate, Time, Body Weight, mL/h, Relay and Drug Library—enable flexible clinical use. Optional modes such as Micro, Sequence, Ramp Up/Down, Loading Dose and TIVA add advanced workflow support.
Safety features include a four-level occlusion system (150–900 mmHg), real-time pressure display, anti-bolus mechanism, air-bubble detection, titration without stopping infusion and more than 5000 events stored in the internal log. With long battery life (>10 hours single-channel @ 5 mL/h) and IP44 protection, EN-S5D is well-suited for bedside and transport environments.
- 4.3-inch color touch screen
- Dual-channel syringe infusion system
- Syringe sizes supported: 2/3 mL, 5 mL, 10 mL, 20 mL, 30 mL, 50/60 mL
- Automatic syringe size detection
- Accuracy: ±2%
- Flow-rate range: 0.1 – 2000 mL/h (0.01 mL/h steps)
- VTBI: 0 – 9999.99 mL (0.01 mL steps)
- KVO rate: 0 – 5 mL/h (0.01 mL/h steps)
- Bolus rate: 0.1 – 2000 mL/h (manual & automatic)
- Infusion modes: mL/h, Rate, Time, Body Weight, Relay, Drug Library
- Optional modes: Micro, Sequence, Ramp Up/Down, Loading Dose, TIVA
- Occlusion levels: 4 levels (150 – 900 mmHg)
- Drug library capacity: ≥2000 drugs with DERS
- Anti-bolus mechanism
- Titration without stopping infusion
- Last Therapy Memory
- Real-time DPS pressure display
- Single and accumulated air-bubble detection
- History log: >5000 records
- Optional Wi-Fi for central monitoring
- DB15 multifunction interface
- IP44 water-resistant housing
- Battery: 2600 mAh lithium polymer
- >10 hours single-channel @ 5 mL/h
- >5 hours dual-channel @ 5 mL/h
- Dimensions: 230.5 × 129.5 × 189 mm
- Weight: approx. 2.7 kg
- Dual-channel system increases clinical flexibility
- Touchscreen simplifies daily operation and reduces staff training
- Wide infusion range covers adult, pediatric and neonatal applications
- Drug library with DERS reduces medication errors
- IP44 protection enables safe use in critical conditions and transport
- Long operating time supports ambulance and mobile-care usage
- Real-time pressure monitoring enhances patient safety
ICU, HDU, emergency departments, operating rooms, pediatrics, neonatology, oncology and transport where precise dual-channel syringe infusion is required.
ISO 13485 certified. CE-marked Class IIb medical device.
