EN‑V5

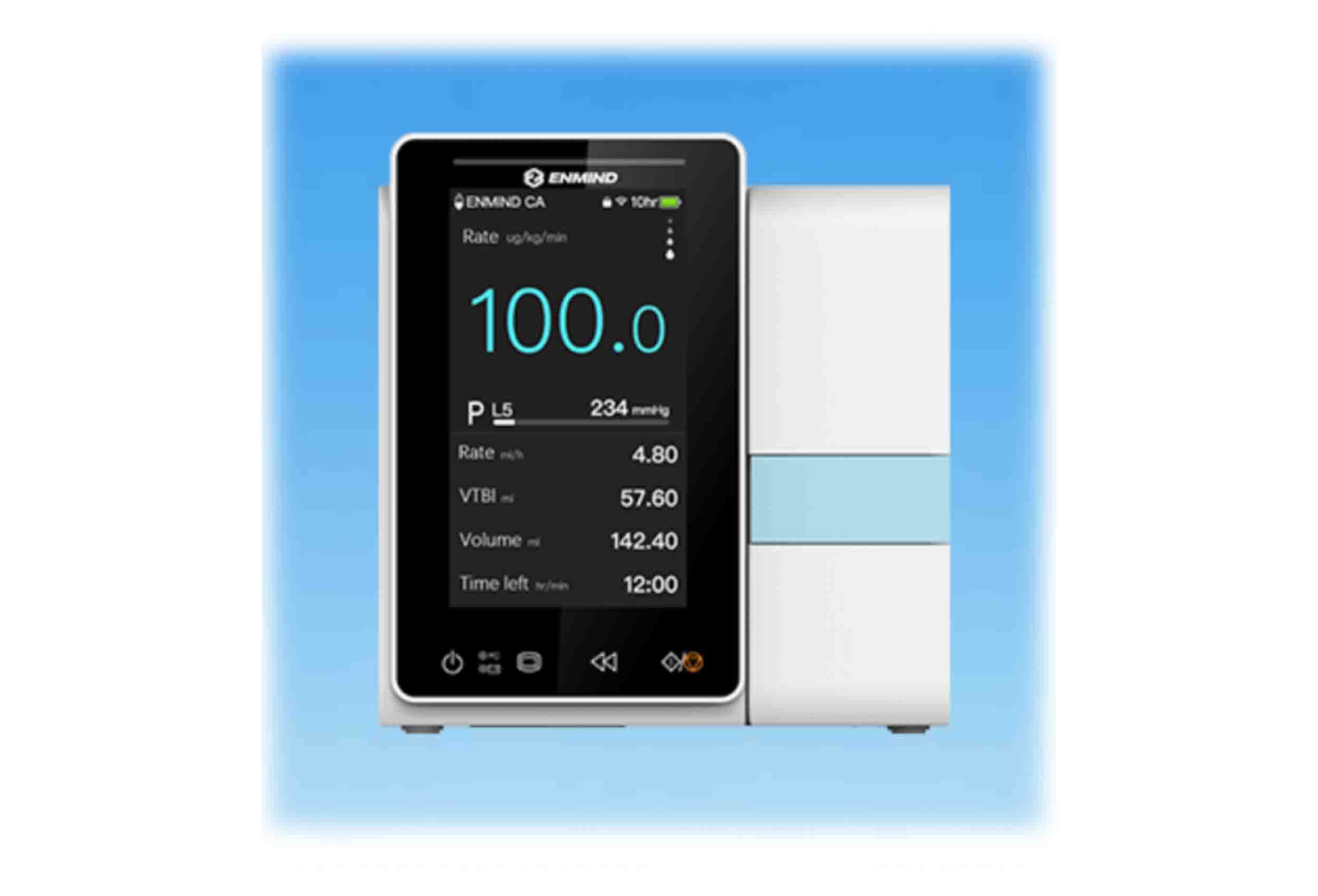

EN-V5 is a compact volumetric infusion pump designed for safe and flexible infusion therapy in hospitals and clinics. It features a 4.3-inch LCD color touch screen that allows parameter setting and editing directly on the display, with clear visualization of rate, volume and alarm information. The pump is compatible with standard IV sets and can store up to 200 editable brands, supporting easy adoption into existing clinical workflows.
The device offers five infusion modes plus a dedicated Micro mode, with infusion rates ranging from 0.1 to 2000 mL/h in 0.01 mL/h increments. Clinicians can adjust rate, volume, air level and occlusion level without stopping the infusion. EN-V5 incorporates multiple safety features including adjustable occlusion levels, air-bubble detection, drug error reduction software (DERS) and an extensive alarm system. Last-therapy memory enables rapid restart of previous infusion settings.
With more than 10 hours operating time at 25 mL/h from its dual 2600 mAh lithium-polymer batteries, optional Wi-Fi connection to a central monitor and IP44 ingress protection, EN-V5 is suitable for general wards, emergency departments, transport and ambulance use.
- 4.3-inch LCD color touch screen
- Volumetric infusion using standard IV sets (up to 200 editable brands stored)
- Five infusion modes plus Micro mode control
- Flow-rate range: 0.1 – 2000 mL/h (minimum increment 0.01 mL/h)
- VTBI range: 0 – 9999.99 mL
- KVO rate: 0 – 5 mL/h adjustable (increment 0.01 mL/h)
- Bolus rate: 0.1 – 2000 mL/h (automatic and manual bolus available)
- Accuracy: ±5%
- Occlusion levels: 5 selectable levels (50 – 900 mmHg)
- Drug library capacity: ≥ 2000 drugs with DERS (Drug Error Reduction System)
- Titration function to change flow rate without stopping infusion
- Reset of total volume, occlusion level and bubble level without stopping infusion
- Micro mode to limit maximum infusion rate for safety
- Real-time pressure display (DPS) with adjustable single/accumulated bubble detection
- History record: more than 5000 entries
- Event and alarm types including VTBI infused, occlusion, pressure drop, battery empty, KVO finished, door open, single/accumulated air bubble and system error
- Wireless: optional Wi-Fi connection to central monitor
- Interface: DB15 multifunction interface
- AC power: 110–240 V, 50/60 Hz; external DC power: 10–16 V
- Battery: 2 × 2600 mAh lithium-polymer batteries, >10 hours operating time at 25 mL/h
- Waterproof rating: IP44
- Dimensions: 138 (L) × 131.5 (W) × 90 (H) mm (pole clamp included)
- Weight: approx. 1.5 kg (with pole clamp)
- Touch screen interface simplifies parameter setting and reduces training time
- Wide flow-rate range and multiple modes support a broad range of infusion therapies
- Drug library and DERS help reduce medication errors and standardize protocols
- Ability to adjust key parameters without stopping infusion improves workflow and patient comfort
- Long battery life and compact design make the pump suitable for transport and ambulance use
- Comprehensive alarm system and IP44 protection enhance patient safety in demanding environments
General infusion therapy, oncology, pediatrics, ICU and HDU, emergency departments, operating rooms and transport/ambulance use requiring compact, long-running volumetric infusion pumps.
Designed and manufactured under ISO 13485 quality management system. CE-marked Class I CF device and compliant with EN1789:2
