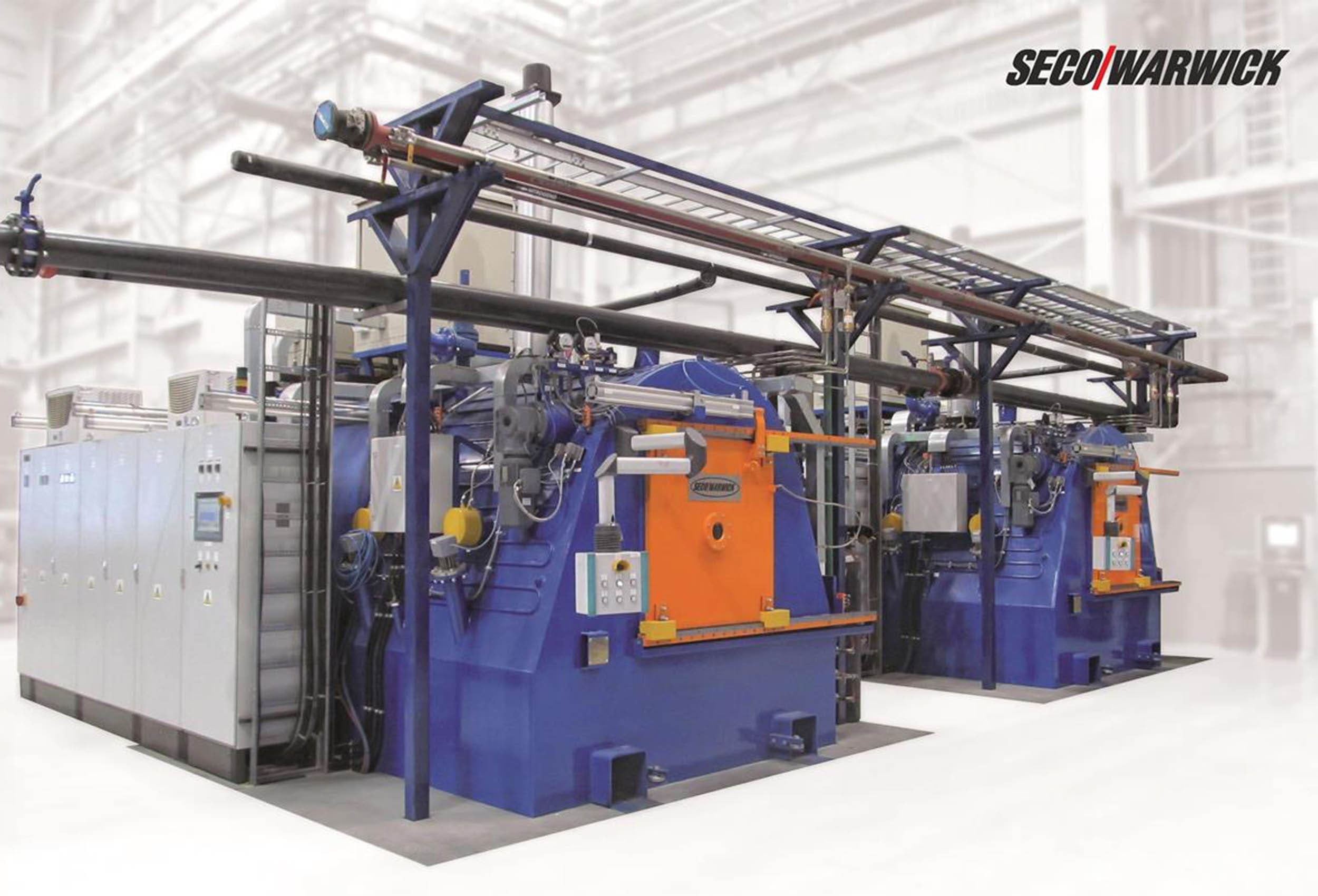

CaseMaster Evolution – T/D (Double & Triple Chamber Vacuum Furnace)

1

CaseMaster Evolution (CMe-D/CMe-T) is an advanced family of double- and triple-chamber horizontal vacuum furnaces engineered for Low-Pressure Carburizing (LPC) and oil or high-pressure gas quenching, the system provides maximum flexibility with continuous or semi-continuous batch processing, short process cycles, low production cost, and high uniformity. The CMe-D version integrates a heating chamber and a dedicated oil or gas quenching chamber, while the CMe-T version adds an additional pre-heating chamber, enabling up to three loads to be processed simultaneously from loading to unloading.

Both systems support multiple quenching methods including oil, 24-bar nitrogen or helium gas quenching, gas-over-oil, and in-chamber gas quenching. The furnaces are ideal for automotive, aerospace, transmission, gear manufacturing, machine-building, and commercial heat-treating industries. The CMe series eliminates CO/CO₂ emissions, ensures clean processing with no oxidation, and provides extremely consistent carburizing results with minimal distortion.

  • • Double-chamber (CMe-D) and triple-chamber (CMe-T) configurations
  • • Low-Pressure Carburizing (LPC®) process capability
  • • High-pressure gas quenching: up to 24 bar (N₂ or He)
  • • Multiple quenching modes: oil, gas, gas-over-oil, in-chamber gas quench
  • • Graphite heating chamber with low thermal losses
  • • Fully automatic operation and recipe-based control
  • • High throughput, especially with CMe-T triple-chamber design
  • • Pre-heating chamber enabling simultaneous multi-load processing
  • • Uniform temperature distribution and excellent process repeatability
  • • Optional FineCarb® and PreNit® LPC/LPN technologies
  • • Up to 3× shorter carburizing cycles and 3× higher productivity (CMe-T)
  • • Extremely low operating cost with no CO/CO₂ emissions
  • • Very low distortion thanks to 24-bar gas quenching
  • • Clean, oxidation-free processing
  • • Superior surface hardness and case-depth uniformity
  • • High flexibility for batch or semi-continuous operation
  • • Environmentally friendly and safe — no flammable atmospheres
  • • Lower utility consumption due to efficient thermal design
  • • Automotive and transmission components
  • • Gears, shafts, bearings, and structural parts
  • • Aerospace components
  • • Machine-building industries
  • • Commercial heat-treating workshops
  • • Processes: LPC carburizing, oil/gas quenching, annealing, brazing, tempering

The system is designed to comply with industrial vacuum heat-treating and safety standards and supports AMS2750 and automotive heat-treat process requirements.
