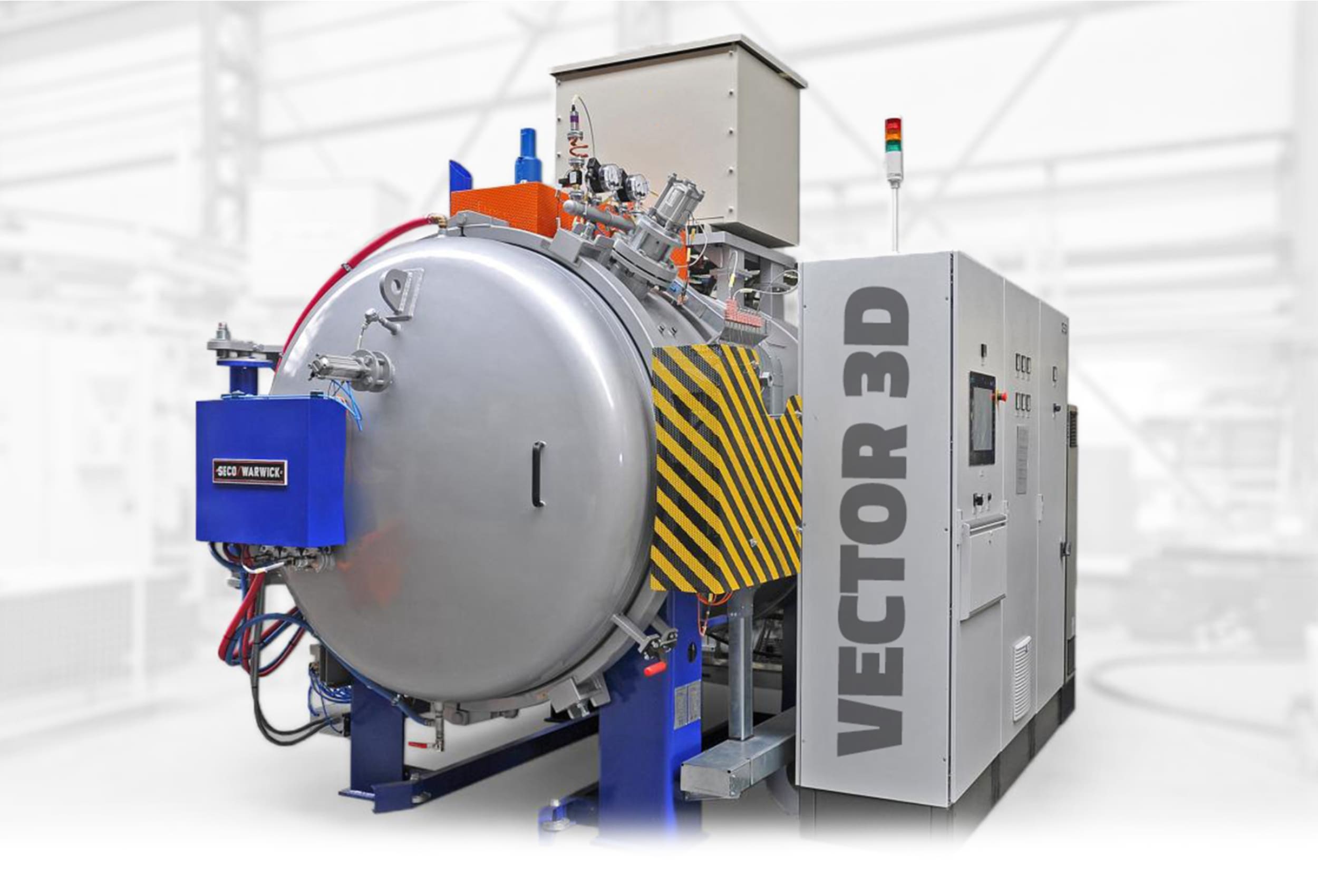

VECTOR 3D – Complete Post‑Processing Vacuum Furnace

1

VECTOR 3D is a high-vacuum, high-temperature furnace designed specifically for complete post-processing of metal additive-manufactured (AM) components. It supports binder removal, sintering, heat treatment and finishing operations required to obtain final mechanical properties and surface quality. The system offers excellent heating uniformity, a graphite or all-metal chamber, adjustable cooling, and pump systems optimized for efficiency. VECTOR 3D is suitable for high-demand industries such as aerospace, automotive and medical manufacturing.

  • • Temperature capability up to 2300°C
  • • Excellent heating uniformity meeting aerospace requirements
  • • Graphite or all-metal hot-zone options
  • • Adjustable cooling system for different part geometries
  • • High-efficiency pumping system to reduce cycle time and energy cost
  • • Multiple binder-removal system configurations
  • • Intuitive control system for easy operation
  • • Suitable for mass production and R&D
  • • World-brand components with strong service support
  • • Complete post-processing workflow for AM parts (debinding, sintering, heat treatment)
  • • High part quality and repeatable metallurgical performance
  • • Energy-efficient and cost-effective operation
  • • Versatile system supporting both production and prototyping
  • • High durability and long furnace service life
  • • Fast maintenance response thanks to global support network
  • • Metal 3D-printed components (AM parts)
  • • Aerospace, automotive, medical and tooling applications
  • • Debinding, sintering, solution heat treatment, hardening, carburizing, annealing, brazing, coating and tempering processes
  • • Processing parts of various sizes with standard zones: 250×250×400, 400×400×600, 600×600×900, 900×900×1200 mm

furnace built to high-vacuum and aerospace-grade heat-treatment standards.
