Taco Single-Stage, Double-Suction Horizontal Split Case Pumps (GT Series)
- Taco GT pumps combine a horizontal split casing with a high-efficiency double-suction impeller. The casing arrangement allows servicing without disturbing piping connections. Replaceable shaft sleeves and wear rings simplify maintenance, while a reinforced steel base and standard drip pan support reliable installation and operation.
- Sizes: 10–18 inches.
- Performance: 870–19,150 GPM; 20–430 ft head; 50–1,500 HP, depending on model.
- Working pressure: Standard 175 PSIG (1,210 kPa); optional 300 PSIG (2,070 kPa), subject to pressure–temperature limits.
- Fluid temperature: Up to 250°F (120°C).
- Connections: ANSI Class 125 or Class 250 flanges.
- Casing: ASTM A48 Class 30A cast iron with integral mounting feet.
- Impeller: Bronze; optional AISI 304 stainless steel.
- Shaft: AISI 1045 carbon steel; optional AISI 420 stainless steel.
- Replaceable components: Bronze or stainless steel shaft sleeves and wear rings, depending on construction.
- Mechanical seal: Carbon rotating face, silicon carbide stationary seat and Viton elastomers.
- Base: Reinforced structural steel with integral drip pan and ¾-inch drain; grouting recommended by Hydraulic Institute and ASHRAE.
- Coupling: Flexible coupling suitable for conventional starting and variable-frequency-drive operation.
- Options: External seal flushing and 5-micron cartridge filter.
- Efficient double-suction impeller supports economical operation.
- Split casing simplifies inspection and servicing.
- Replaceable sleeves and wear rings reduce maintenance costs.
- Material options accommodate different operating requirements.
- Durable mechanical seals support reliable operation.
- Integral drip pan collects seal leakage.
- Heating systems.
- Air conditioning.
- Pressure boosting.
- Cooling water transfer.
- Water supply.
- ANSI B16.1: Class 125 and Class 250 flange pressure–temperature ratings.
- ANSI Grade G6.3: Dynamic impeller balancing.
Other Products From Taco Comfort Solutions
Taco Single-Stage, Double-Suction Vertical Split Case Pumps (TS Series)
Compact, frame-mounted centrifugal pumps for reliable circulation in heating, cooling, pressure boosting and water supply systems.

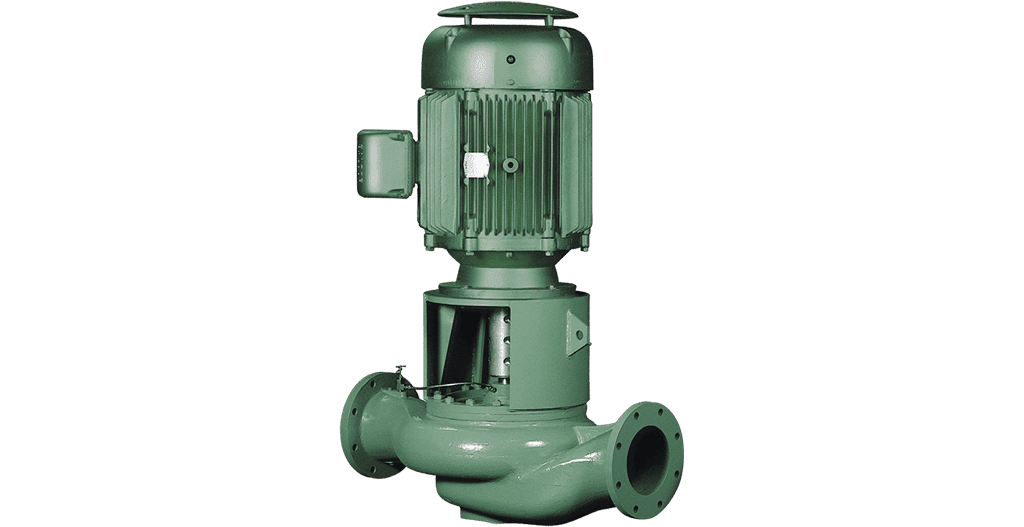

Taco Vertical Split-Coupled In-Line Pumps (KS / SKS Series)
Compact centrifugal pumps for HVAC, industrial and domestic water systems, with a split coupling that allows seal replacement without disturbing

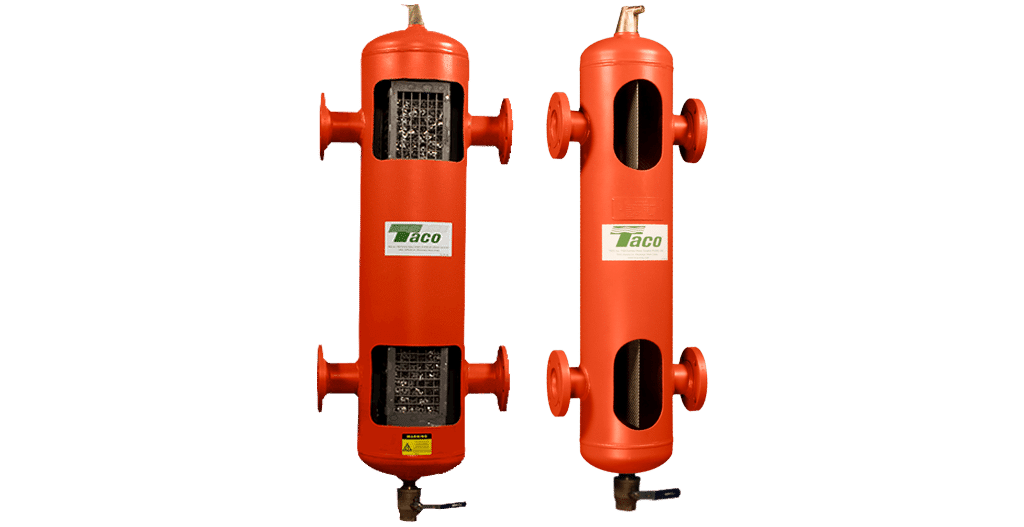

Taco Hydraulic Separators (5900 FlexBalance Series)
