Bar End & Partial Heating Systems – CBB (Horizontal) & CHV (Vertical)

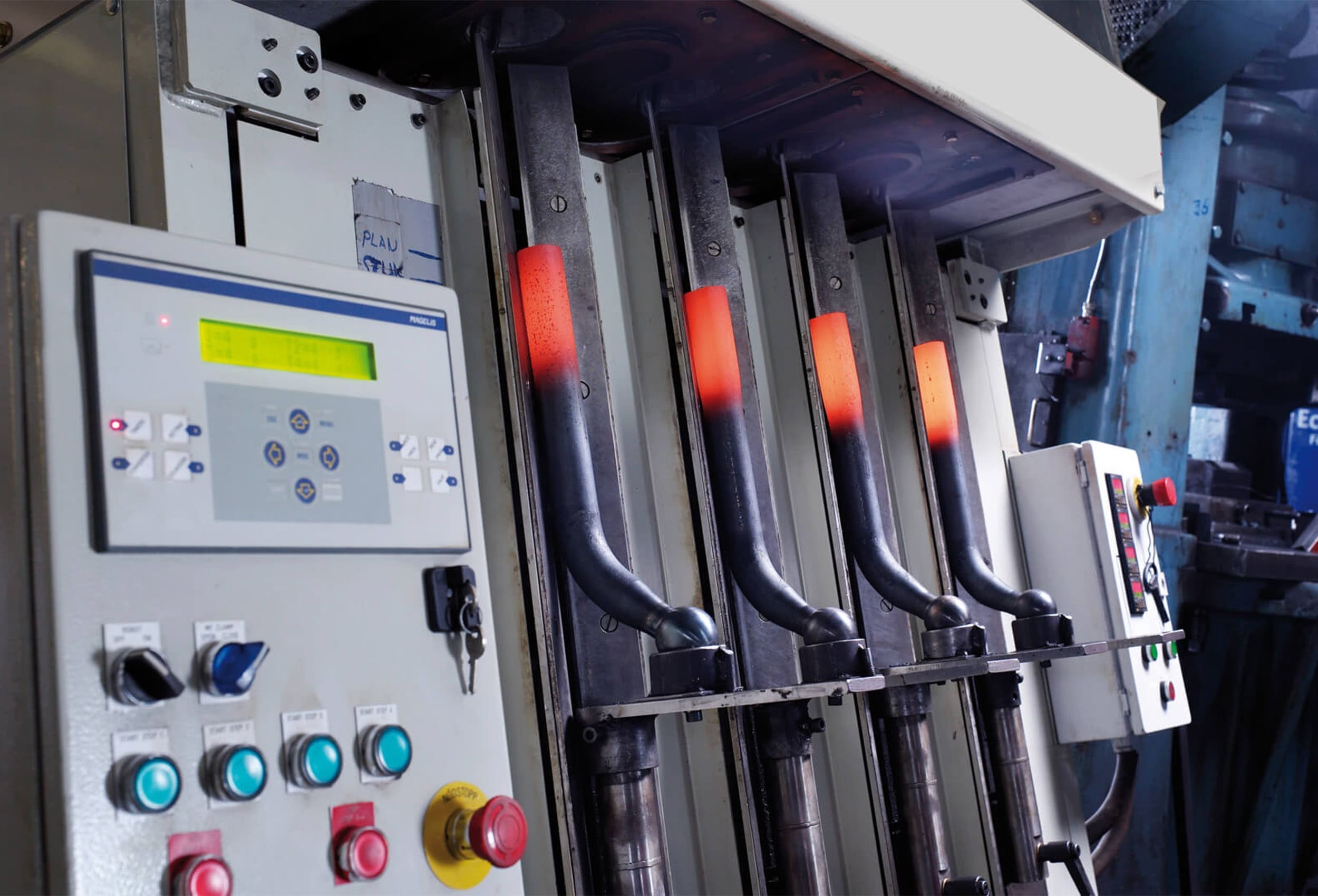

ENRX HeatLine bar end induction heating

ENRX Induction bar end and partial heating systems provide rapid, accurate heating of bar ends and formed components prior to forging. They are available in two main configurations:

  • • CBB Horizontal Heaters – Multi-coil systems ideal for bolts, agricultural tools, shaped parts and profiles. Cycle times can reach 3.6 seconds per part.
  • • CHV Vertical Heaters – Highly versatile, capable of heating any profile up to 1,500 mm. Supports manual or robot loading, and optional wheel-mounted mobility.

Both systems use advanced Sinac converters with automatic load matching, microprocessor control, and integrated capacitors. They can be combined with conveyors, elevators, loaders, hoppers, vibratory feeders, and robot arms to create complete automatic lines.

  • • Extremely fast heating (<1 second to reach 1,000°C on small components)
  • • Automated and repeatable temperature control
  • • Minimal scaling and reduced forging die wear
  • • Multi-coil simultaneous heating (CBB)
  • • Vertical system design removes scale automatically (CHV)
  • • Compatible with manual or robotic loading
  • • Sinac converter with automatic load matching
  • • Suitable for a wide range of bars, profiles, and preformed parts
  • • High production throughput
  • • Improved operator safety and reduced fatigue
  • • Lower scaling leads to longer tool life
  • • Seamless integration into forging lines
  • • Reduced heat, dust, and noise in the workplace
  • • High accuracy and repeatability

Bar end heating and partial heating of components prior to forging. Suitable for bars, billets, handle bars, agricultural tools, bolts, shaped components, and special profiles.
