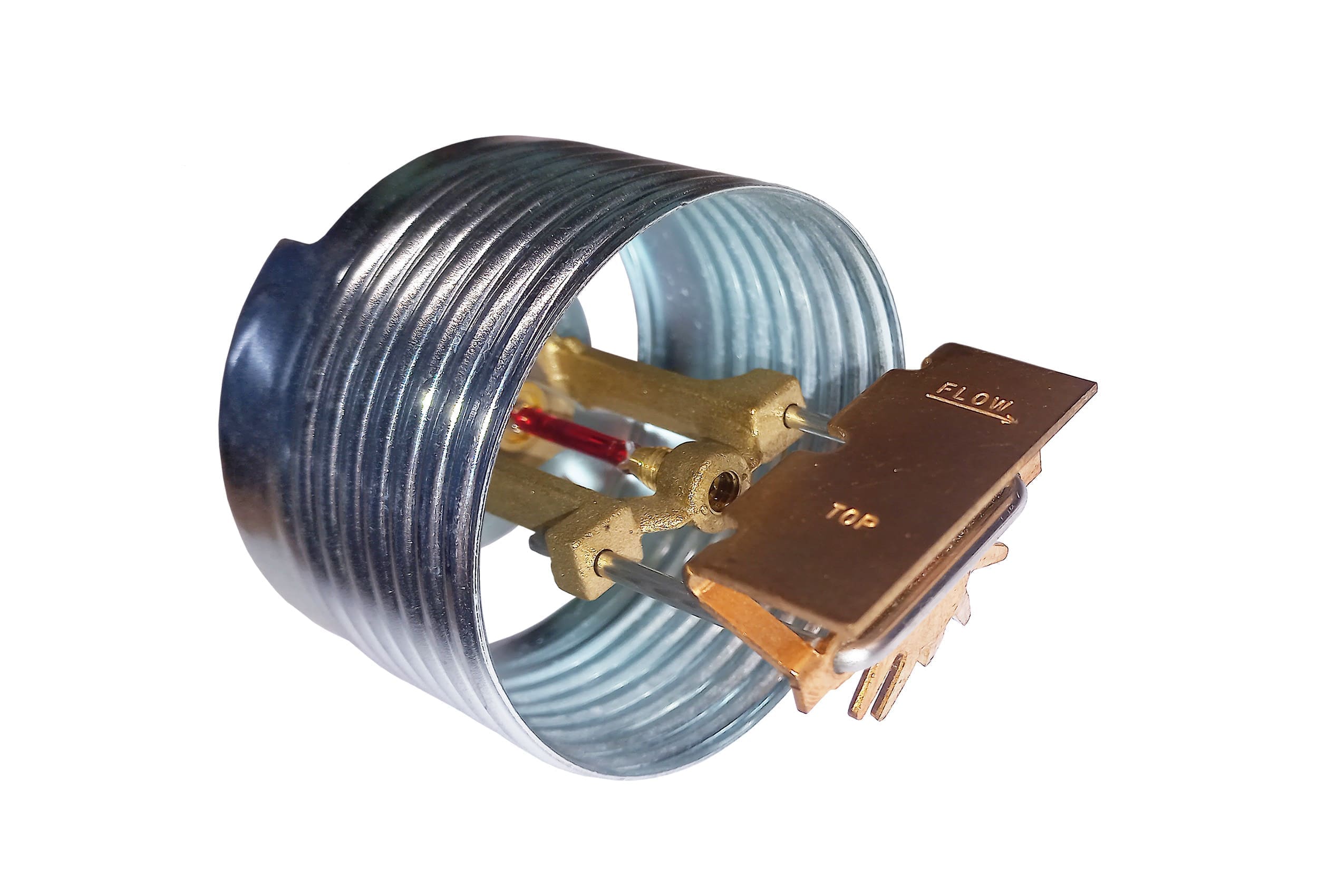

Concealed Sidewall Sprinkler Standard Coverage
- 🔹 AG Fire Sprinkler’s Standard Coverage Concealed Sidewall Sprinklers From AG Fire Sprinkler are designed for dependable and aesthetically pleasing fire protection. They provide efficient and uniform water distribution while maintaining a concealed appearance ideal for modern interior applications.
- 🔹 Available Models:
- 🔹 Standard Response K80 Concealed Sidewall Sprinkler – GA1171
- 🔹 Quick Response K80 Concealed Sidewall Sprinkler – GA1271
- 🔹 Heat Sensitive Element: Liquid Filled Glass Bulb
- 🔹 Heat Sensitivity:
- 🔹 Standard Response (5 mm Glass Bulb)
- 🔹 Quick Response (3 mm Glass Bulb)
- 🔹 K-Factor: K80 (5.6)
- 🔹 Temperature Rating: 74 °C – 100 °C
- 🔹 Working Pressure: 175 psi (12 bar)
- 🔹 End Connection: 1/2” NPT Male Threading
- 🔹 Finish: Brass
- 🔹 Aesthetic concealed design ideal for visible wall-mounted installations
- 🔹 Reliable fire protection with quick and standard response configurations
- 🔹 High-quality brass construction ensures corrosion resistance and durability
- 🔹 Easy installation with standard NPT connections
- 🔹 Ideal for use in commercial, residential, and hospitality environments requiring sidewall fire sprinklers with minimal visual impact — such as hotel corridors, lobbies, offices, and public facilities.
- 🔹 UL Listed
- 🔹 FM Approved

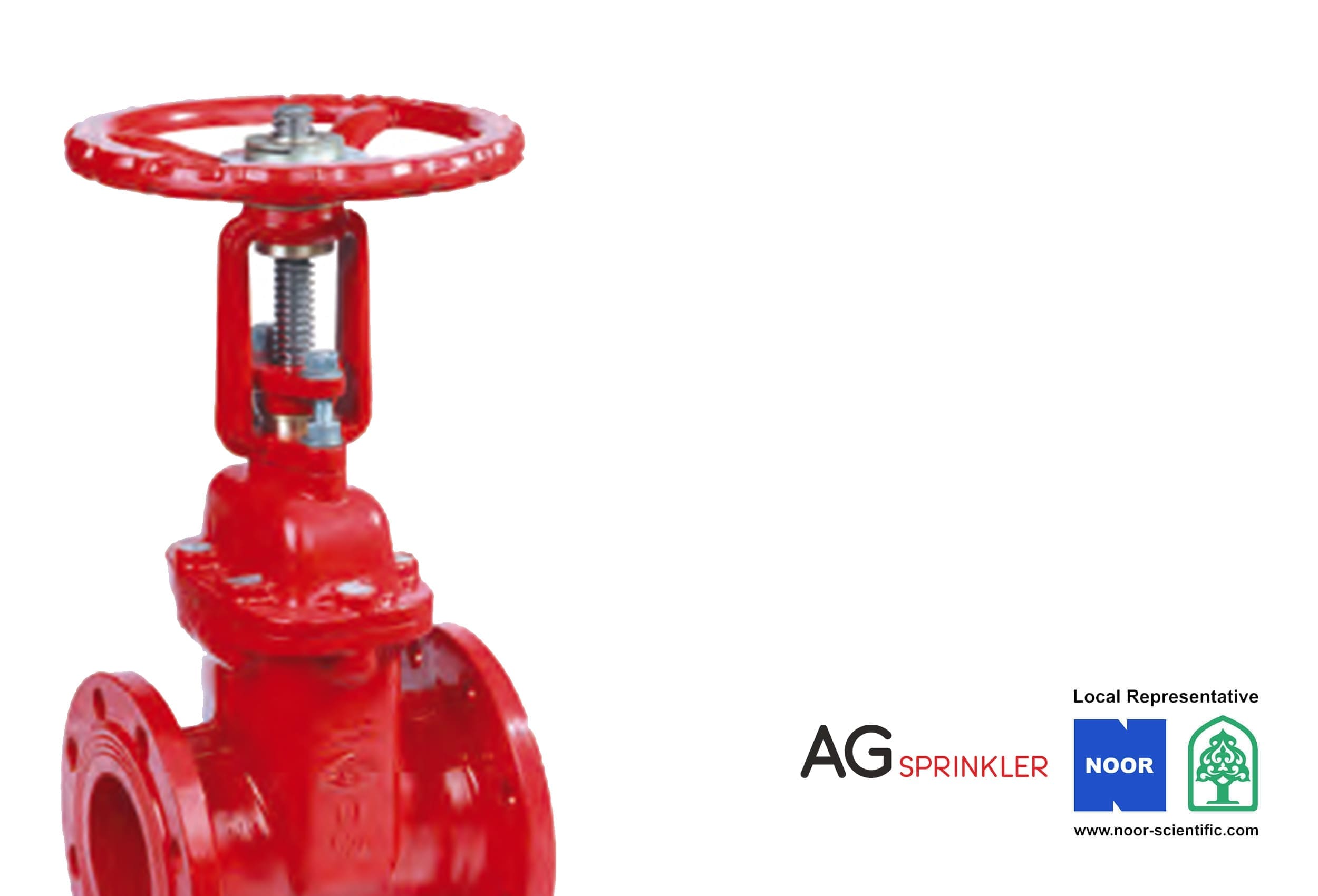

Other Products From AG Fire Sprinkler
