Taco Vertical In-Line Pumps (KV / SKV Series)

Taco KV pumps provide efficient circulation in a vertical in-line arrangement that saves space and requires no isolation pads. Hydraulically balanced impellers reduce bearing loading, while a dry shaft design, replaceable shaft sleeve and seal flush line simplify maintenance. SKV SelfSensing versions offer integrated variable-speed control and ProBalance® balancing; optional ECM packages improve energy efficiency.

KV sizes: 1½–8 inches.
KV performance: 10–2,650 GPM; 11–385 ft head; ¾–60 HP, depending on model.
Working pressure: Standard 175 PSIG (1,210 kPa); optional 300 PSIG (2,070 kPa), subject to pressure–temperature limits.
Fluid temperature: Standard 250°F (120°C); optional 300°F (149°C) configuration.
Connections: Equal-sized suction/discharge ports; ANSI Class 125 flanges, optional Class 250.
Casing: Cast iron; ductile iron casing for Class 250 construction.
Impeller: Bronze or stainless steel, depending on construction.
Shaft: Carbon steel with replaceable bronze sleeve; optional Type 303 stainless steel sleeve.
Seal: Ceramic/EPT standard; optional tungsten carbide or silicon carbide.
Seal protection: Factory-installed vent/flush line and bronze throttle bushing.
Motor: Standard NEMA JM frame.
Service provisions: Back pullout construction, suction/discharge pressure taps and casing drain.
Options: Bronze wear ring, ductile iron support stand, 5-micron filter and cyclone separator.
SKV controls: Constant flow, constant pressure, flow compensation and duplex alternation; no-flow/dry-run alerts with optional shutdown.
ECM package: 3–10 HP, 1,750 RPM, 230/460 V, three-phase, 60 Hz; TEFC motor with required variable-frequency drive.
eLink™: NFC access to equipment documentation and support.

Small footprint reduces installation space.
In-line construction simplifies installation.
Back pullout design enables servicing without disconnecting piping.
Close coupling improves alignment and seal life.
Balanced impellers reduce bearing loading.
Seal flushing and replaceable sleeves reduce wear and maintenance costs.
Optional SelfSensing and ECM packages reduce balancing effort and energy consumption.

Other Products From Taco Comfort Solutions

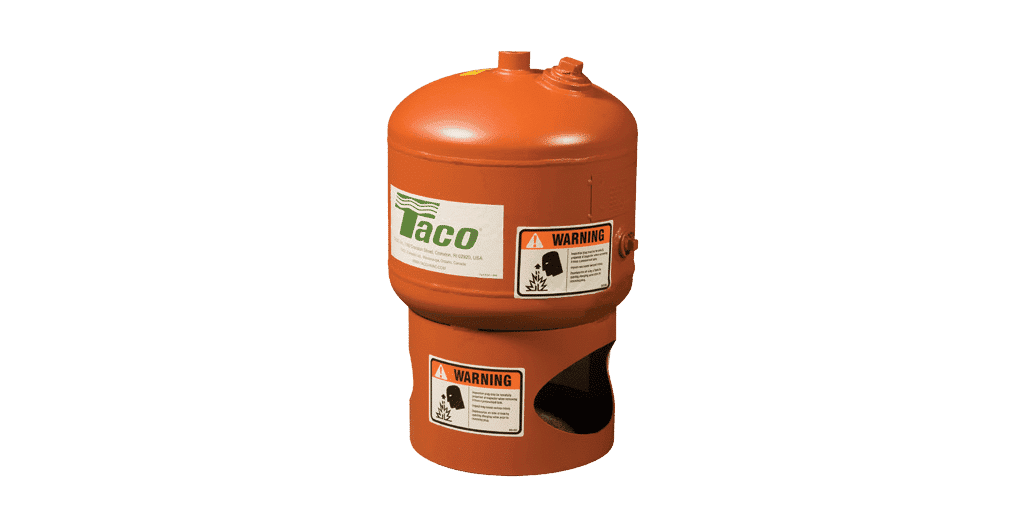

Steel expansion tanks with a heavy-duty butyl rubber diaphragm that permanently separates air and water, providing thermal expansion control in
